DHC - 60.7 - Initial Setup

"Initial Setup" automatically starts on the television when you first turn the unit on.

Settings proceed in the following order:

1 AccuEQ Room Calibration
･ Automatic calibration for optimum speaker settings
2 Source Connection
･ Checking that each input source is connected correctly
･ HDMI link function settings
3 Remote Mode Setup
･ Settings required to operate other AV Components with the Remote Controller
4 Network Connection
･ Checking network connections

＊ Firmware update notification: If the unit is connected via LAN and there is firmware update available, the "Firmware Update Available" message will appear. To execute updating, select "Update Now" with the cursor buttons of the remote controller and press Enter. When "Completed!" appears, press On/Standby on the main unit to turn the unit into standby mode. Then updating will be completed. (The unit automatically turns itself into standby mode after about 3 minutes even if you don't press On/Standby, and updating will be complete.)

Before Start

Setup is performed as a series of responses to questions asked by the unit. Select the item with the cursors of the remote controller and press Enter to confirm your selection. To return to the previous screen, press Return.

• Switch the input on the TV to that assigned to the unit.

Select the language first. Next, a summary of the initial settings is displayed. Select "Yes" in this screen and press Enter on the remote controller.

Re-doing initial setup: If you terminate the procedure on the way or change the setting made in
the initial setup and want to call up the setup wizard again, press RCV and then Setup on the remote
controller, select "8. Miscellaneous" - "Initial Setup", and press Enter.

1 AccuEQ Room Calibration

The test tone coming from each speaker will be measured to enable setting of the number of speakers, volume level, each speaker's optimum crossover frequencies, and distance from the primary listening position, and also enable correction of distortion caused by the room acoustic
environment.

• You cannot return to the previous screen during speaker setup, even if you press Return.

1. Place the speaker setup microphone.

When the above screen is displayed, before starting the procedure, place the supplied speaker setup
microphone at the measurement position ★ by referring to the following figure.



＊ Correct measurement will not be possible if the microphone is held by hand. Measurement is not possible if headphones are being used.
＊ The subwoofer sound may not be detected since it is extremely low frequencies. Set the subwoofer volume to around the half of its maximum volume.
＊ Measurement may be interrupted if there is ambient noise or radio frequency interference. If this occurs, close the window and turn off the home appliance and fluorescent light.

2. After placing the microphone at the measurement position, select "Do it Now" with the cursors and press Enter.

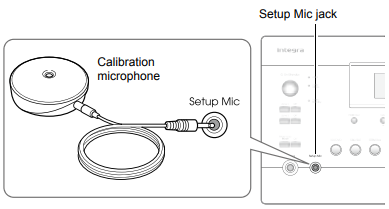

3. When "Please plug microphone that came in a box with AV receiver" is displayed, connect the
microphone to the Setup Mic jack of the unit.

4. Set the speakers you have connected and the type of Height Speakers.

When the screen above is displayed, set the items with the cursors on the remote controller. The image on the screen changes as you choose the number of channels in "Speaker Channels", so refer to it when performing the settings. After completing all the settings, press Enter on the remote controller.
After this, follow the guidance displayed on the TV screen.

• When the cursor is on an item, the content of the item will be shown in the lower part of the screen.

5. The test tones sound from the connected speakers and automatic speaker setting starts.
Measurement will be made three or more times for each speaker. It takes several minutes to be completed. Keep the room as quiet as possible during measurement. If any of the speakers do not produce the test tone, check for disconnection.

• During measurement, each speaker outputs the test tones at a high volume. Be careful of sound leak that may disturb your neighbors, or be careful not to frighten young children.

6. When the measurement is completed, the measurement result is displayed.
Press on the remote controller to check the settings. Press Enter with "Save" selected. To have the
settings reflected for all the speakers, select "On (All Channels)" in the next screen and press Enter on the
remote controller.

• Select "On (Except Front Left / Right)" to disable just the front speakers.
• If there is an error message, follow the on-screen instruction to remove the error cause. If the
  subwoofer was not detected, turn the volume of the subwoofer up to maximum and then select "Retry".

About THX playback
THX recommends setting the speakers manually if you use THX-certified speakers or playing back with
THX listening modes.

• THX recommends setting the crossover frequency to "80Hz(THX)" manually.
• Due to the electrical complexities and the interaction with the room, you may notice irregular results when setting the level or distance of each speaker. If this happens, THX recommends setting the speakers and the subwoofer manually.

7. When "Please unplug setup microphone." is displayed, disconnect the microphone.

2 Source Connection

You can check the connections for each of the inputs and configure the HDMI link function.

1. When the Source Connection start screen is displayed, select "Yes, Continue" with the cursors
and press Enter.

2. Select the desired input to check the connection and press Enter.
Start playback of the selected device. If connection is correct, video/audio of the input source selected on the unit will be played.
3. After checking the connection, select "Yes" with the cursors and press Enter.
･ If you select "No" and press Enter, the error cause will be displayed. Follow the guidance to remove the
error cause and check the connection again.
4. Select "Yes" with the cursors and press Enter on the remote controller to check the connection of other inputs or select "No, Done Checking" and press Enter to skip.
If you select "Yes", you will return to the screen of step 2.
If you select "No, Done Checking", you will proceed to step 5.
5. Settings for the CEC link function.
To enable the HDMI link function with CEC compatible equipment, select "Yes", then select "Yes" again in the next screen.

If you select "Yes", the connection with ARC compatible TV and HDMI Standby Through function will be set to "On" and enabled.

3 Remote Mode Setup

You can enable operation of the other components using the remote controller of the unit. When the Remote Mode Setup start screen is displayed, select "Yes, Continue" with the cursors and press Enter on the remote controller. Follow the guidance to select the desired Remote Mode button and in the keyboard screen, enter the first three characters of the brand name of the device you are going to program and search for the remote control code. The guidance will also explain how to set the remote controller.

4 Network Connection

You can check the network connection. When the Network Connection start screen is displayed, select "Yes" with the cursors and press Enter on the remote controller. If you select "Yes" in the next screen, you can view the Ethernet cable connection status.

■ If connection is successful

"Successfully Connected" is displayed on the screen.

If this is not displayed, try doing the setting again.

＊ Privacy policy
A confirmation screen asking you to agree to the privacy policy is displayed during network setting. Select "Yes" and press Enter to indicate agreement.

■ Terminating initial setup
After finishing the initial setup, keep "Finished" selected and press Enter on the remote controller. Connection and setting of the unit is now complete.

Audio output of connected players
To enjoy digital surround sound including Dolby Digital and DTS, audio output should be set to "Bitstream output" on the connected Blu-ray Disc Player or other device. Depending on the settings
on the Blu-ray Disc Player there may be cases when Dolby TrueHD, Dolby Atmos, and DTS-HD Master
Audio audio is not output according to the format of the source. In this case, in the Blu-ray Disc Player
settings try setting "BD video supplementary sound" (or secondary sound) to "Off". Change the listening
mode after changing the setting to confirm.
