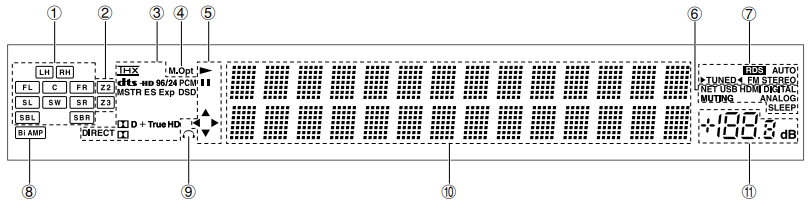

DHC - 60.7 - Display

Speaker/Channel display: Displays the output channel
that corresponds to the selected listening mode.
Z2/ Z3: Lights when the output to Zone 2/ Zone 3 is set to on.
Lights according to the type of input digital audio signals and the listening mode.
Stays lit when Music Optimizer is enabled.
Lights when playing NET or USB.
"NET": Lights when "NET" input is selected and the unit is connected to the network. It will flash if the connection is not correct. "USB": Lights when input is "NET" and USB is connected and selected. It will flash if the connection is not correct. "HDMI": Lights when HDMI signals are input and the HDMI input is selected. "DIGITAL": Lights when digital signals are input and the digital input is selected. "MUTING": Flashes when muting is on. "ANALOG": Lights when analog signals are input and the analog input is selected or when HDMI and digital signal inputs are not assigned. "SLEEP": Lights when the sleep timer is set.
Lights in the following conditions. "RDS" (Australian models): Receiving RDS
broadcasting. "AUTO": Tuning mode is auto. "TUNED": Receiving AM/FM radio. flashes while tuning is automatically performed. "FM STEREO": Receiving FM stereo.
"Bi AMP": Using bi-amp.
Stays lit when headphones are connected.
Displays various information of the input signals. Pressing Display displays the type of input digital
signals and the listening mode.
Shows the volume level.
