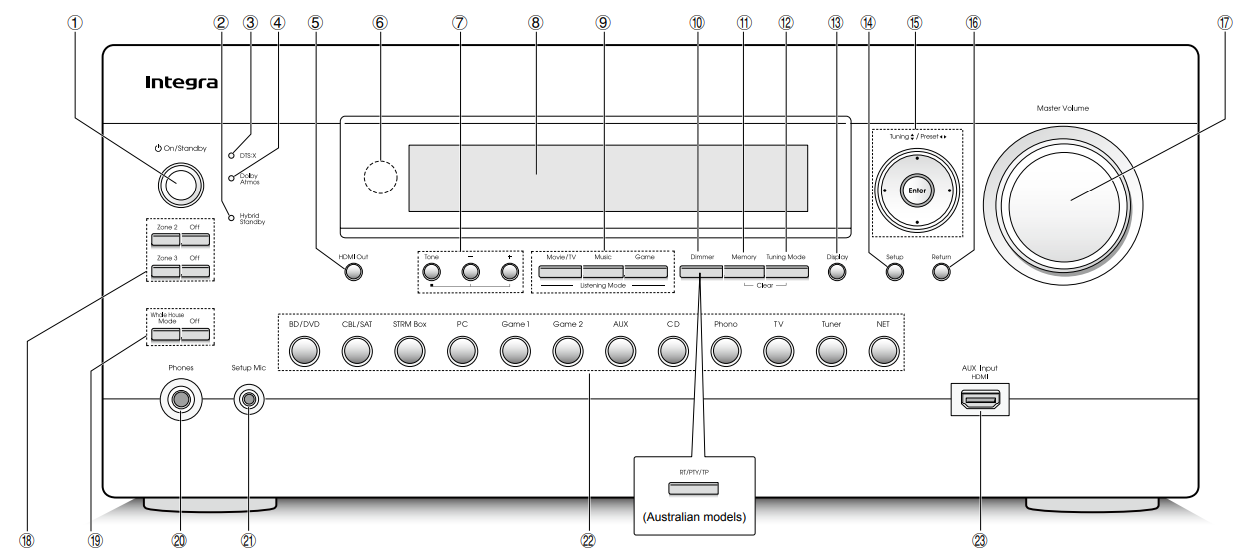

DHC - 60.7 - Front Panel

On/Standby button: Turns the unit on or into standby mode.
Hybrid Standby indicator: Lights if the unit enters standby mode when the HDMI Standby Through, USB Power Out at Standby or Network Standby function is enabled.
DTS:X indicator: Lights when playing DTS:X.
Dolby Atmos indicator: Lights when playing Dolby Atmos.
HDMI Out button: Allows you to select the HDMI jack to output video signals.
Remote control sensor: Receives signals from the remote controller.
Tone, Tone Level buttons: Adjusts the high tone and low tone. Press the Tone button repeatedly to select the item to adjust from "Bass", "Treble" and "Phase Matching Bass", and press the Tone Level buttons to adjust.
Display
Listening Mode button: Allows you to select the listening mode.
Dimmer button (North American models): Switches the brightness of the display.
RT/PTY/TP button (Australian models): Can be used when receiving the station transmitting text information.
Memory button: Registers a radio station.
Tuning Mode button: Switches the tuning mode.
Display button: Switches the information on the display.
Setup button: Used when making settings.
Cursor buttons, Tuning button, Preset button and Enter button: Moves the cursor and confirms the selection. When listening to AM/FM broadcasting, tune in to the station with Tuning or select the registered station with Preset .
Return button: Returns the display to the previous state.
Master Volume: Allows you to adjust the volume.
Zone2/Zone3/Off button: Controls the multi-zone function.
Whole House Mode, Off button: Controls the WHOLE HOUSE MODE function to play the same source in all the multi-zone connected rooms.

Phones jack: Stereo headphones with a standard plug are connected.
Setup Mic jack: The supplied speaker setup microphone is connected.
Input selector buttons: Switches the input to be played.
AUX Input HDMI jack: A HD camera or such other device is connected.
