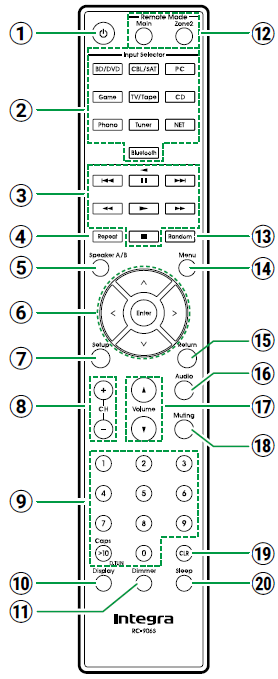

DTM-7.4 Remote Controller

On/Standby button
Input Selector buttons: Switches the input to be played.
Play buttons: Used for playback operations for the Music Server ( →p67) or USB device ( →p65).
Repeat button : Used for repeat play operations when playing Music Server or USB. Each time
       you press the button, the mode switches from (1-track repeat) to (folder repeat).
Speaker A/B button: Select the terminals to output audio from between SPEAKERS A/B.
Cursor buttons and Enter button: Select an item with the cursors, and press Enter to confirm
       your selection. Pressing LEFT/RIGHT button allows you to switch the screen when a
       music folder list or file list is not displayed on one screen on the TV.
Setup button: Displays advanced setting items on the TV or the display to have a more
enjoyable experience with this unit. ( →p73)
 CH (+/-) buttons: Used to select AM*/FM* radio stations.
        * North American models only
 Numbered buttons
 Display button: Switches the information on the display. You can display information such as
the input source, volume, and input format when pressed repeatedly during play.
 Dimmer button: Switches the brightness of the display with three levels. It cannot be turned off
        completely.
Remote Mode Main/Zone 2 buttons: Controls the multi-zone function ( →p61).
Random button: Used for random play operations when playing Music Server or USB.
      Random turns on or off each time you press the button.
Menu button: Used to display the menu.
Return button: Returns the display to the previous state while setting.
Audio button: Enables you to make adjustments such as the strength of the bass and treble and
       the balance between left and right. ( →p39)
Volume buttons
Muting button: Temporarily mutes audio. Press the button again to cancel muting.
CLR button: Deletes all characters you have entered when entering text on the TV screen.
Sleep button: You can allow the unit to enter standby automatically when the specified time
      has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not want to            turn the unit to standby automatically, select "Off"
