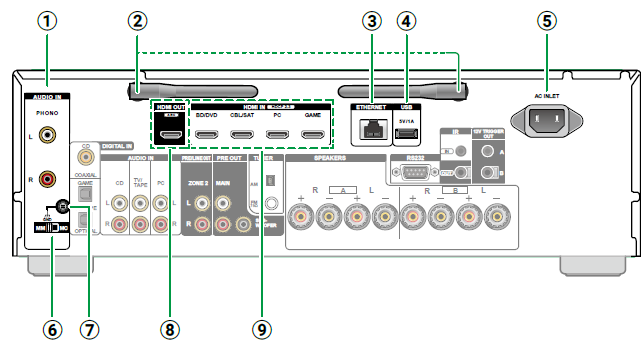

DTM-7.4 Rear Panel

PHONO jack: Use an analog audio cable to connect either an MM or MC type cartridge
      turntable.
Wireless antenna: Used for Wi-Fi connection or when using a Bluetooth enabled device. Adjust
       the angles according to the connection status.
ETHERNET port: Connect to the network with an Ethernet cable.
USB port: Connect a USB storage device to play music files ( →p65). You can also supply
     power (5 V/1 A) to USB devices with a USB cable.
AC INLET: Connect the supplied power cord.
MM/MC switch: Switch to suit the turntable cartridge type (MM or MC).
GND terminal: Connect the ground wire of the turntable.
HDMI OUT jack: Transmit video signals and audio signals with an HDMI cable connected to a
     monitor such as a TV or projector.
HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV
      component.


DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a
      digital optical cable or digital coaxial cable.
AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
     *For models that do not have a tuner, the “PC” jack is changed to a “TUNER” jack.
ZONE 2 PRE/LINE OUT jacks: Output audio signals with an analog audio cable connected
     to an integrated amplifier in a separate room (ZONE 2).
MAIN PRE OUT jacks: Connect a power amplifier. ( →p22)
      SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable.

TUNER AM/FM terminal (*North American models only): Connect the supplied antennas.

RS232 port: Connect a home control system equipped with an RS-232C port. For installing
      a home control system, contact the specialized stores.
IR IN, IR OUT jacks: Connect a remote control receiver unit. ( →p31)
12V TRIGGER OUT A/B jacks: Connect a device equipped with a 12V trigger input jack to
      enable power link operation between the device and this unit. ( →p32)
SPEAKERS terminals: Connect speakers with speaker cables. (North American models are
     banana plug ready. Use plugs with a diameter of 4 mm.) Connection with spade lugs is not supported.
