Web Setup- Others

Loading screen

Web Setup needs to load the device settings when the page loads. This is screenshot of loading screen.

Alert

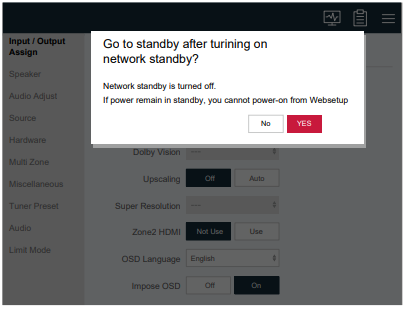

Alert dialog is displayed for warning of operations. The following is a warning screen when trying to going to the standby with the network standby = Off setting.

Alert screen has buttons to confirm to continue or cancel the operation.

Lock screen

The screen of Web Setup is locked in the following situations.

・ Main zone is in standby

・ Miscellaneous Lock Setup = Locked

・ After applying network settings

・ After running Factory Reset

・ After running Recall

・ After uploading settings

・ Initial Setup/Speaker measurement(e.g. AccuEQ)

This is screenshot of the lock screen. If unlockable, an unlock button will appear. Web Setup is redrawn and available when screen is unlocked.

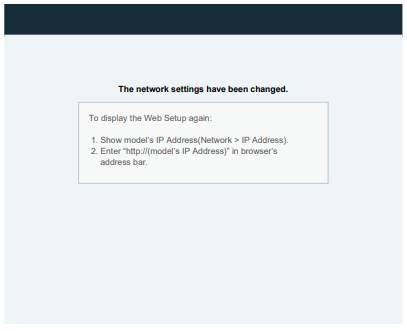

If unlocking is not possible, a screen prompting you to reload manually will be displayed. If the URL changes, such as when the network is changed, a guide to reload page will be displayed.

Error screens

Networking error

This screen is displayed when websetup meet unrecordable networking errors. (ex. LAN cable is unplugged, Network is down, etc...)

About keyboard operation

Web Setup supports basic keyboard operations, but it is browser-dependent and does not fully support it.

Limitation

 Supported browsers

・ Google Chrome

・ Safari

Language

English only

browser's plugins

Web Setup does not support browser's plugins.

browser zoom feature

Web Setup supports only 100%.
