Get start with Web Setup

Web Setup is single page web application.

To start Web Setup, please follow the steps below.

1. Connect your PC or smart device terminal (hereinafter this is called "terminal") to the LAN (no internet required)

2. Connect your device to your LAN (no internet required)

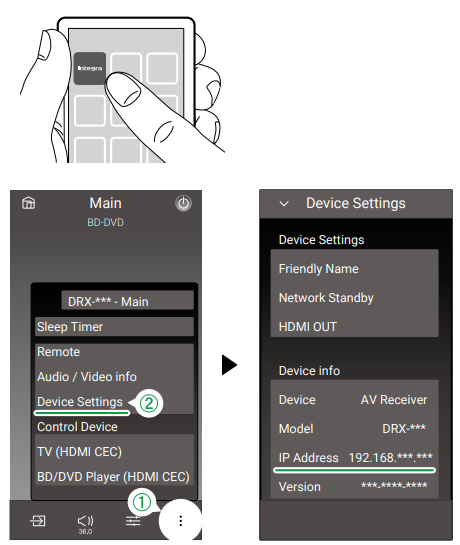

3. Check the IP address of the device

    You can confirm it by following ways,

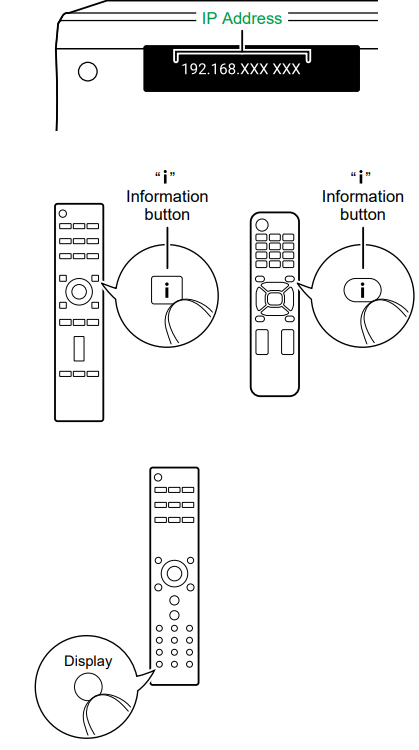

    - Press the Information button or the Display button repeatedly.

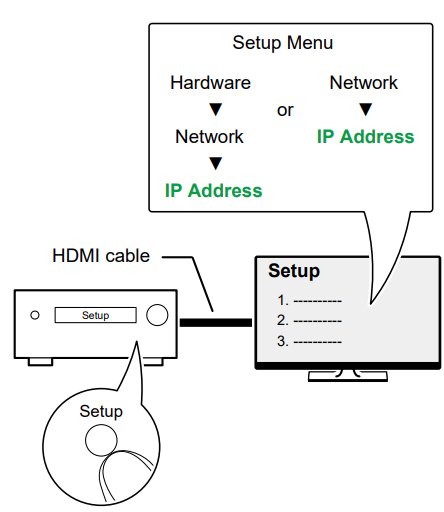

    - Open Setup and confirm Network IP Address.

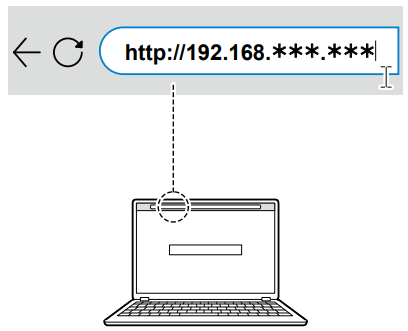

4. Open a browser on your terminal and enter the URL http://(IP Address of device) (*1)

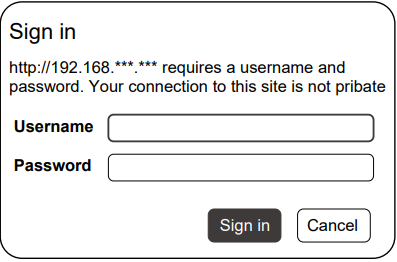

5. When the authentication screen for login appears ciuser, enter the user name = ciuser and password = ciuser .(*2)

Hint

(* 1) Supported browsers.

Supported browsers

・ Google Chrome

・ Safari

(* 2) You can change the password.

Change login password

You can change your password from the additional menu Change Password The following characters cannot be used.

・ space

・ Non-ASCII characters After changing the password, you will need to reload Web Setup.
