DTM-6 - Setup Menu

Ivan
Updated


The unit allows you to configure advanced settings to provide you with an even better experience.

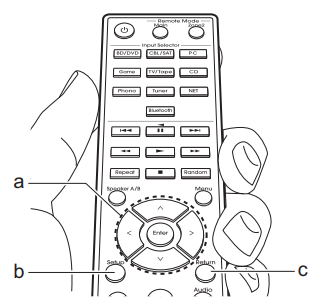

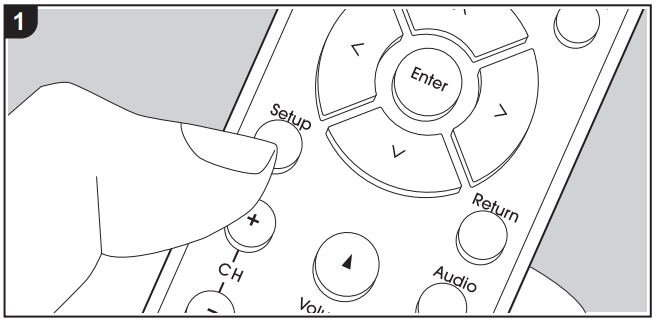

  1. Press Setup (b) on the remote controller.                                                     mceclip1.png
  2. Select the item with the Up/Down buttons (a) on the remote controller and press Enter (a) to confirm your selection.
  3. Select the submenu with the Up/Down buttons (a) on the remote controller.
  4. Select the setting value with the Left/Right buttons (a) on the remote controller and press Enter (a) to confirm your selection.
    - To return to the previous display, press Return (c) .
  5. To exit the settings, press Setup (b).

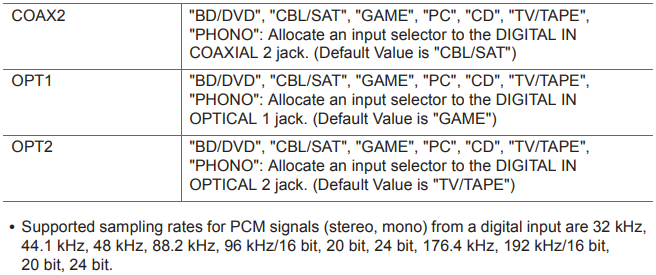

1. DigitalAudio

You can change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. If you do not assign a jack, select "---".

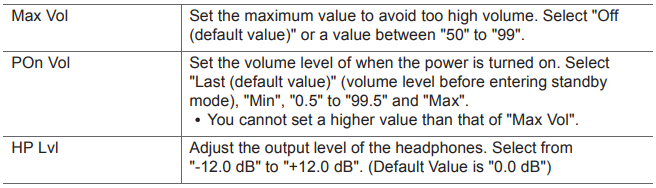

2. Main Volume

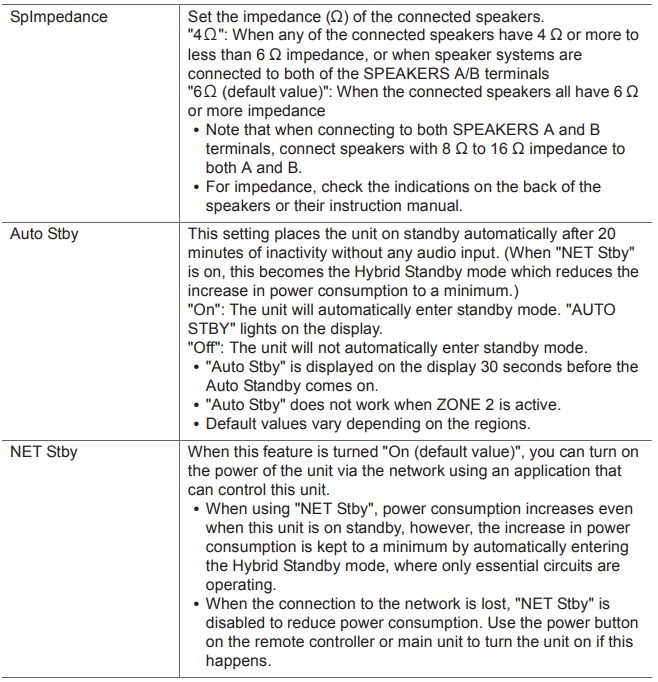

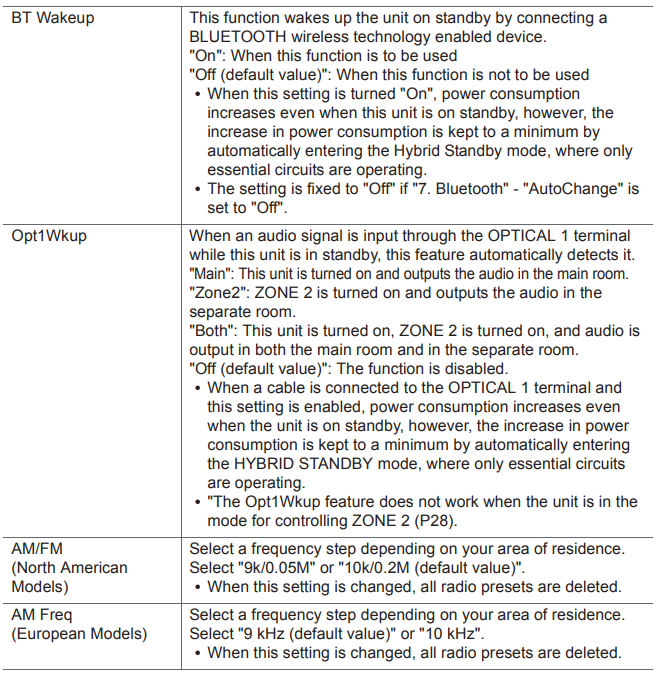

3. Hardware

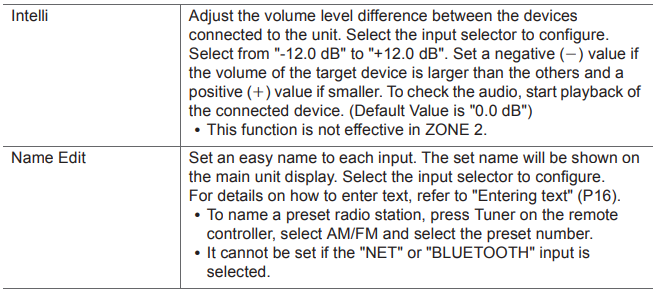

4. Source

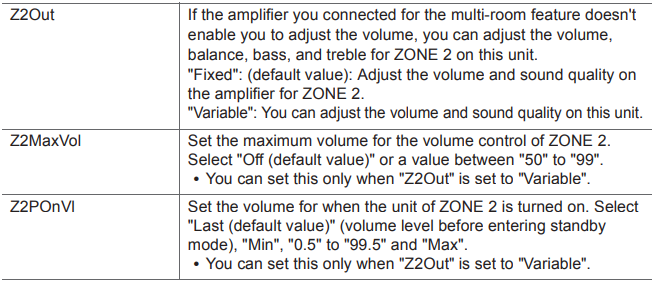

5. Zone2

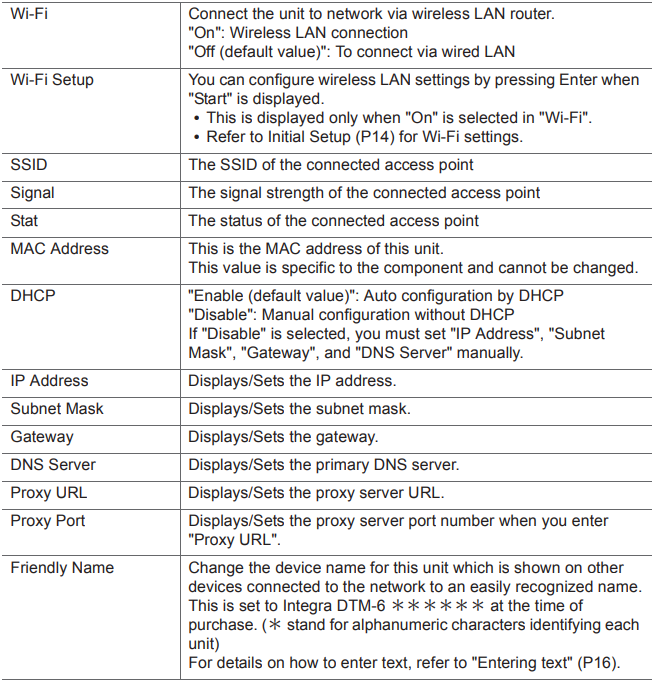

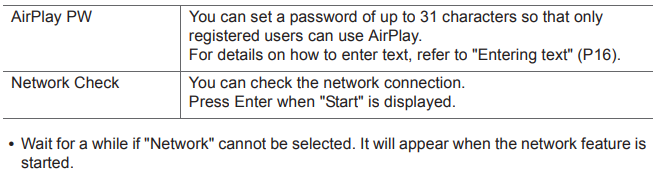

6. Network

When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. Further, to assign fixed IP addresses to each component, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway.

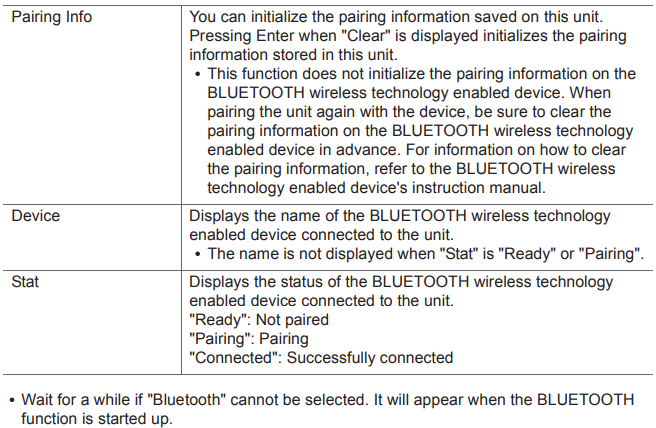

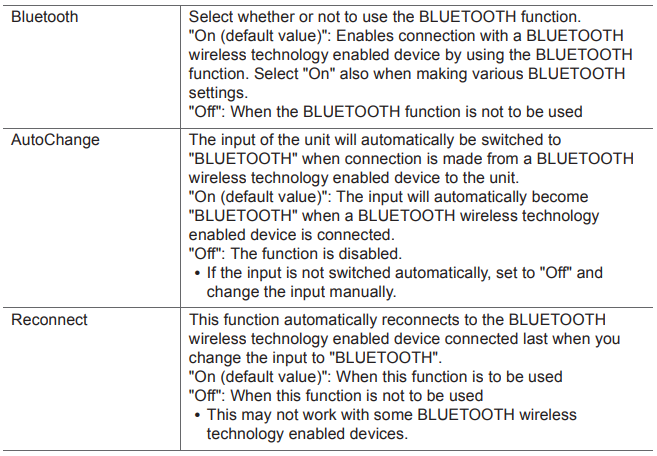

7. Bluetooth

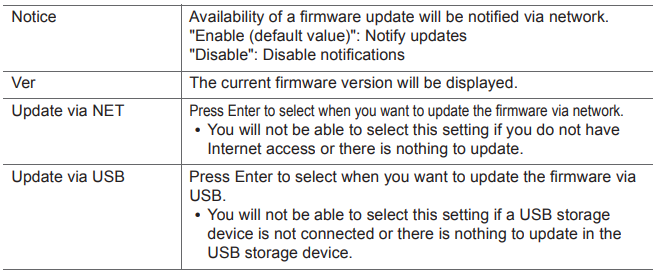

8. F/W Update



9. Lock

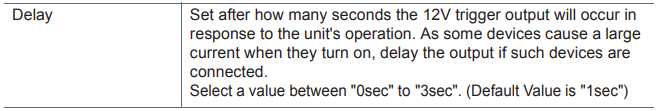

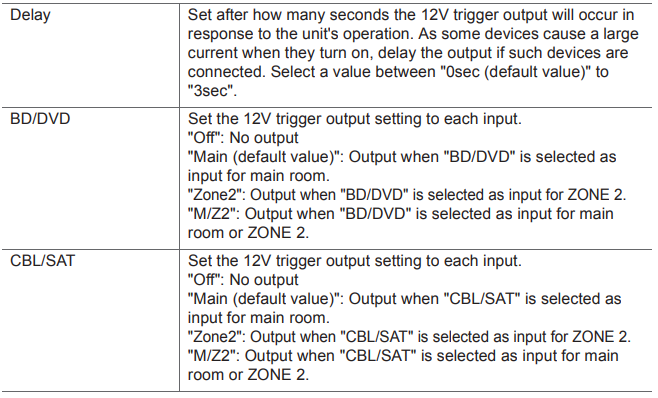

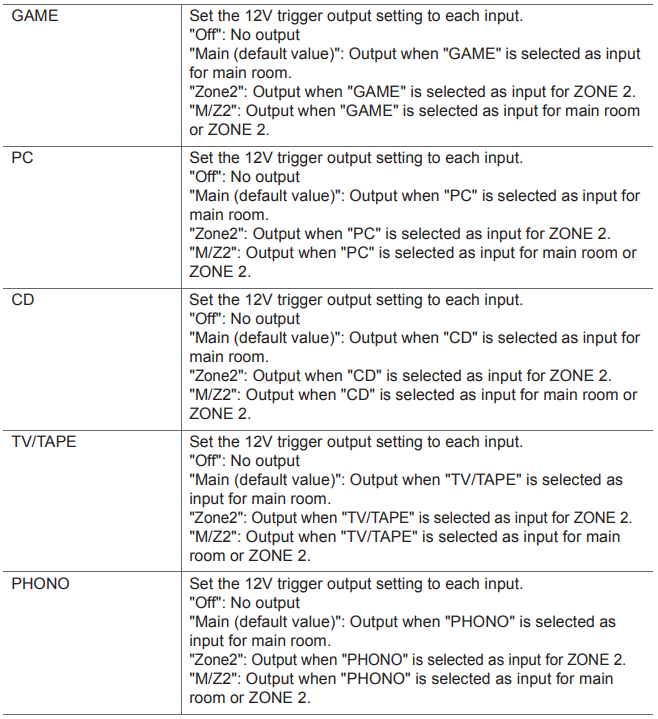

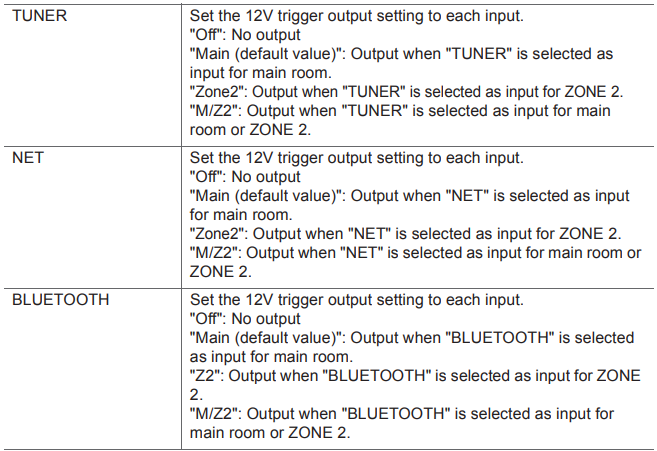

10. 12V TRG A

Set when outputting the control signal (maximum 12 V/100 mA) through the 12V TRIGGER OUT A jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

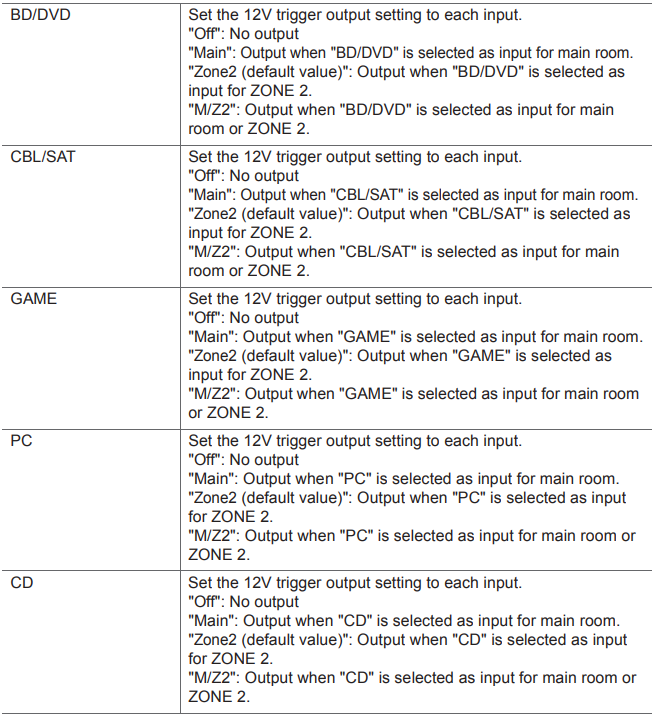

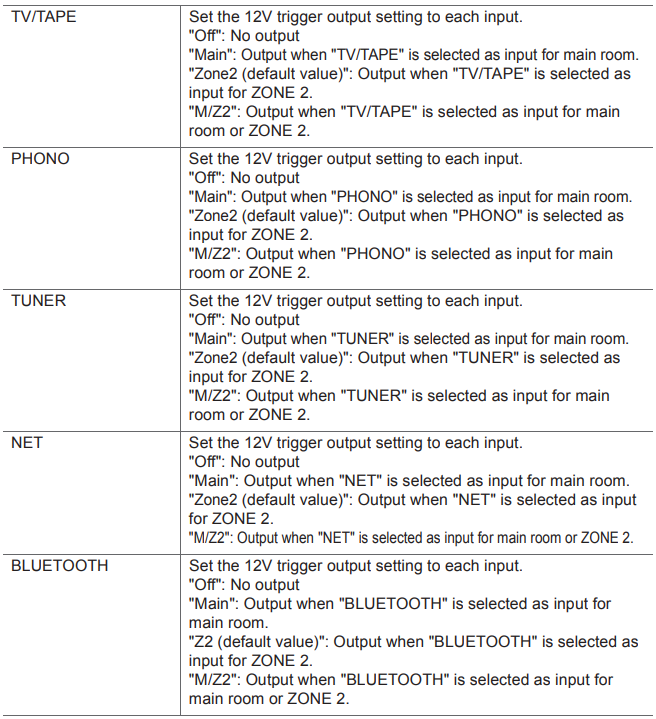

11. 12V TRG B

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT B jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

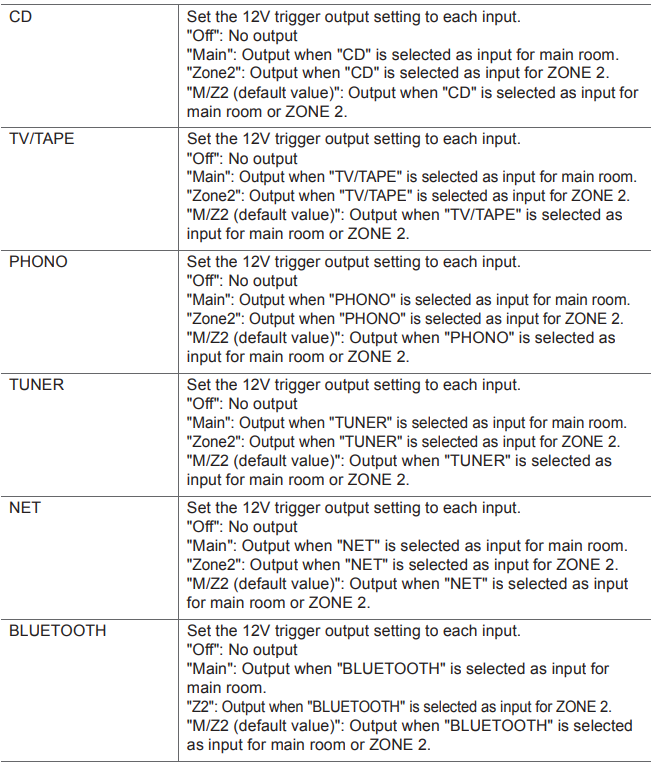

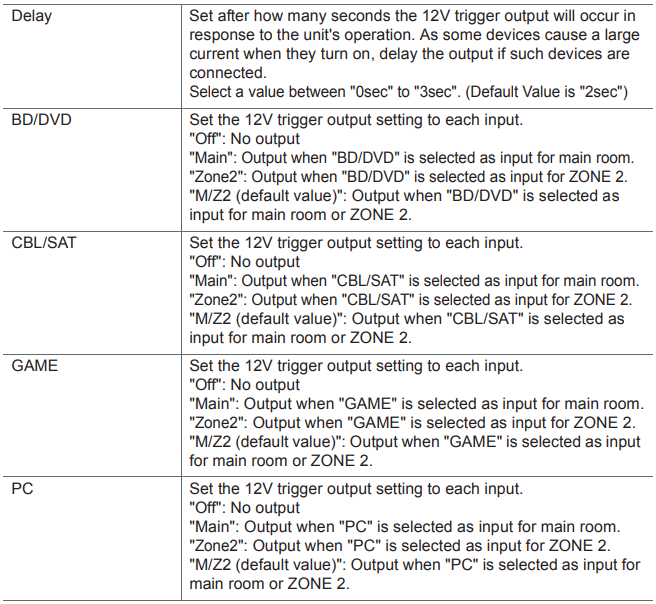

12. 12V TRG C

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT C jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.
