Basic Operations
You can play music files stored on a USB storage device. Perform the following procedure when the unit is on.

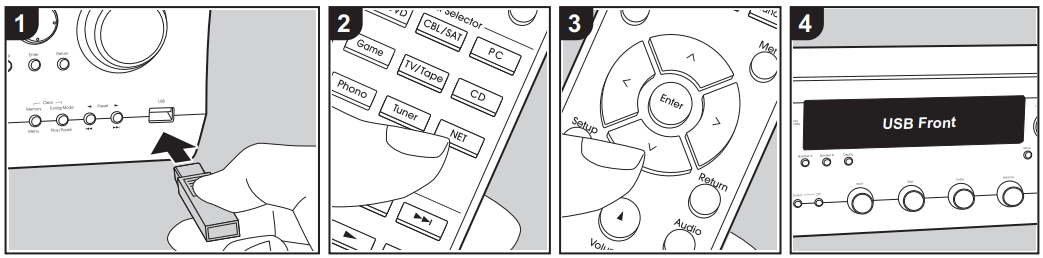

Plug your USB storage device with the music files into the USB port either on the front panel or rear panel of this unit.

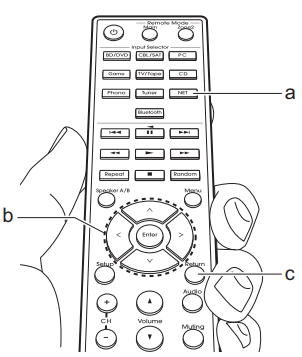

Press NET (a) on the remote controller.
Press the Up/Down cursors (b) on the remote controller, select "USB Front" or "USB Rear" on the display, and then press Enter (b).
- If the "USB" indicator flashes on the display, check whether the USB storage device is plugged in properly.
- Do not unplug the USB storage device while "Connecting..." is on the display. This may cause data
corruption or malfunction.
Press Enter (b) on the remote controller after reading is complete.
Press the Up/Down cursors (b) on the remote controller to select the folder and music file, and then press Enter (b) to start playback.
- To return to the previous display, press Return (c).
- The USB port of this unit conforms with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, which may cause some interruption in sound.

Supported Audio Formats

This unit supports the following music file formats. Note that sound files that are protected by copyright cannot be played on this unit.
MP3 (.mp3/.MP3):

Supported formats: MPEG-1/MPEG-2 Audio Layer 3
Supported sampling rates: 44.1 kHz, 48 kHz
Supported bitrates: Between 8 kbps and 320 kbps and VBR

WMA (.wma/.WMA):

Supported sampling rates: 44.1 kHz and 48 kHz
Supported bitrates: Between 5 kbps and 320 kbps and VBR
WMA Pro/Voice/WMA Lossless formats are not supported

WAV (.wav/.WAV):

WAV files include uncompressed PCM digital audio.

Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit: 8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif/.AIFF/.AIF):

AIFF files include uncompressed PCM digital audio.

Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

Supported formats: MPEG-2/MPEG-4 Audio
Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Supported bitrates: Between 8 kbps and 320 kbps and VBR

FLAC (.flac/.FLAC):

Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit: 8 bit, 16 bit, 24 bit

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit: 16 bit, 24 bit

DSD (.dsf/.dff/.DSF/.DFF):

Supported formats: DSF/DSDIFF
Supported sampling rates: 2.8 MHz and 5.6 MHz
Variable bit-rate (VBR) files are supported. However, playback times may not be displayed correctly.
This unit supports the gapless playback of the USB storage device in the following conditions.
When playing WAV, FLAC and Apple Lossless, and the same format, sampling frequency, channels and quantization bit rate are played continuously

Device Requirements

Note that operation is not guaranteed with all USB storage devices.
This unit can use USB storage devices that comply with the USB mass storage device class standard. The unit is also compatible with USB storage devices using the FAT16 or FAT32 file system formats.
If the USB storage device has been partitioned, each section will be treated as an independent device.
Up to 20,000 tracks per folder can be displayed, and folders may be nested up to 16 levels deep.
USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit.
USB storage devices with security function are not supported on this unit.
If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it.
Media inserted to the USB card reader may not be available in this function. Furthermore, depending on the USB storage device, proper reading of the contents may not be possible.
We accept no responsibility whatsoever for the loss or damage to data stored on a USB storage device when that device is used with this unit. We recommend that you back up your important music files beforehand.
