DTM-6 - Initial setup with auto start-up wizard

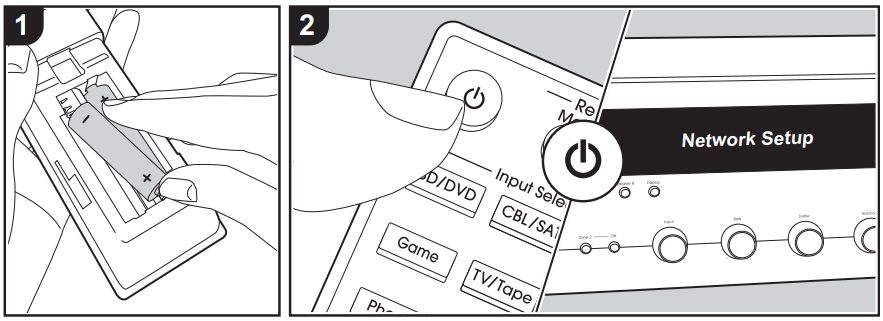

Starting up: When you press , "Now Initializing..." is displayed on the display. After this, when "Now
Initializing..." goes out, you can start operating the unit.

Wi-Fi connection settings

When you first turn the power on, the Network Setup display is displayed automatically, allowing you to easily make Wi-Fi connection settings.



To set, select the item with the cursors on the remote controller and press Enter to confirm.

• To return to the previous display, press Return.

1. Press Enter when "Network Setup" is displayed.
2. To make Wi-Fi settings, select "Wi-Fi". If you have connected with an ethernet cable, select "Wired(Exit)" with Up/Down on the remote controller and press Enter.
3. If you selected "Wi-Fi", select the setting method with Up/Down on the remote controller and press Enter.

• To redo the initial settings, press Setup on the remote controller, and set "6. Network" - "Wi-Fi" to "On". Select "Wi-Fi Setup" after this.

Scan Networks

From the list of SSID for access points such as wireless LAN routers, select the required SSID and make the settings.

1. Select the SSID of the access point you want to connect with Up/Down on the remote controller and press Enter.
2. Select "Enter Password" or "Push Button" with Up/Down on the remote controller and press Enter. If the access point has an automatic connection button, by selecting "Push Button" you can connect without entering a password.
3. If you select "Enter Password", enter the password of the access point. For details on how to enter text, refer to "Entering text"  - If you select "Push Button", then after pressing and holding the automatic setting button on the access point for the required amount of time, press Enter on the
   remote controller.
4. After "Now Connecting" is displayed, the information of the display switches when the Wi-Fi settings are complete.
   - If "Retry" appears on the display, press Enter to retry the settings.

When the access point is not displayed

Press the Right button on the remote controller to select "Other...", then press Enter. Set by entering the SSID of the access point you want to connect.

1. Enter the SSID. For details on how to enter text, refer to "Entering text".
2. Select the authentication method with Up/Down on the remote controller and press Enter.                                                                                                                            -If you select "None", proceed to step 3. If you select "WEP", "WPA", or "WPA2", enter the password and confirm.
3. After "Now Connecting" is displayed, the information of the display switches when the Wi-Fi settings are complete.
   - If "Retry" appears on the display, press Enter to retry the settings.

Use iOS device
Set by sharing the iOS device's Wi-Fi settings with this unit. This unit supports iOS device versions iOS7 and later.

1. Connect the iOS device by Wi-Fi.
2. Select this device in the "SET UP NEW AIRPLAY SPEAKER..." item on the screen of the iOS device and
   select "Next".
   - This unit is displayed as "Integra DTM-6 XXXXXX".
3. After "Now Connecting" is displayed on this unit, when the Wi-Fi settings are complete, the display changes.
   Select "Done" on the screen of the iOS device.

Entering text

Text entry, for passwords, etc., uses the following procedure.



1.  Select the characters or symbols with Up/Down/Left/Right (a).
2. Press Enter (a) to confirm the selected character. Repeat this to enter text.
   - Press Caps (b) to change the characters to be enter, for example to switch between upper and lower case.
   - Press CLR (c) to delete all the input characters.
   3. After completing input, select "OK" with Up/Down/Left/Right (a) and press Enter (a).

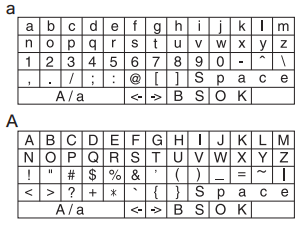

Characters that can be entered

Space: A single space the size of a character is entered.
A/a: Switches between characters displayed. (a A)
(left) / (right) : Select to move the cursor.
BS (backspace): Removes a character on the left of the cursor. The cursor moves left.
OK: Confirms the entered content.
