DRX 4.3-Web Setup

Menu Operations

You can make the settings for the network function of this unit using an Internet browser on a PC, smartphone, etc.
   1. Press on the remote controller to display the Setup menu.
   2. Select "6. Hardware" - "Network" with the cursors, and then take a note of the IP address displayed          in "IP Address".
  3. Start the Internet browser on your PC, smartphone, etc. and enter the IP address of this unit in the             URL field.

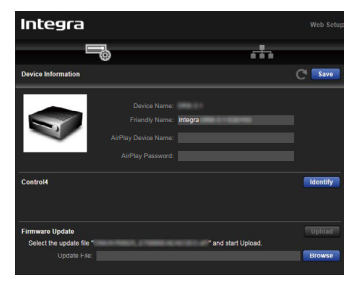

  4. Information for the unit (Web Setup screen) is displayed in the Internet browser.



    5. After changing the settings, select "Save" to save the settings.

Device Information

You can change the Friendly Name or AirPlay Device Name, set an AirPlay Password, etc.
Control4: Register this unit if you are using a Control4 system.
Firmware Update: Select the firmware file you have downloaded to your PC so
you can update this unit.
Network Setting
Status: You can see information for the network such as the MAC address and IP
address of this unit.

Network Connection: You can select a network connection method. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect.
DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway" and "DNS Server" manually.
Proxy: Display and set the URL for the proxy server.
