ADM-20.4 - Front and Rear panels – Integra Support

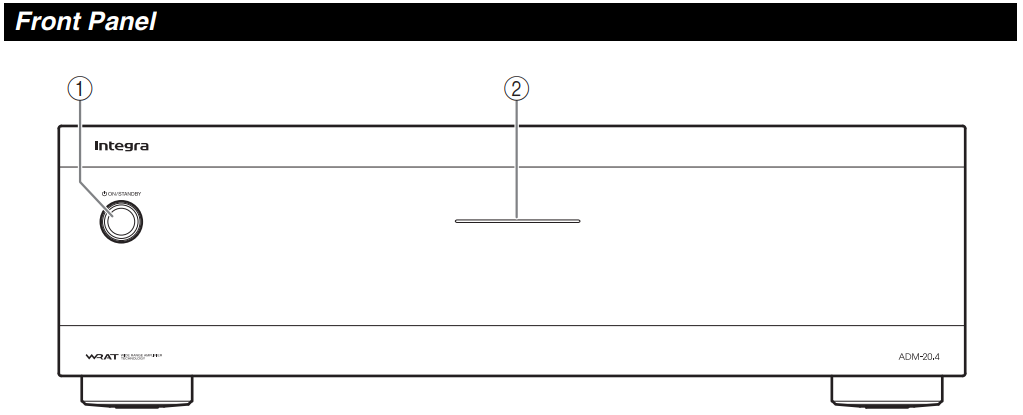

ON/STANDBY button
This button is used to turn the main power on/off.

Power indicator
The power indicator will be lit blue when the main power of ADM-20.4 is turned on.

INPUT LEVEL knob
Turn this INPUT LEVEL knob to adjust the input level of the signal from the INPUT jacks. Normally, set to MAX.

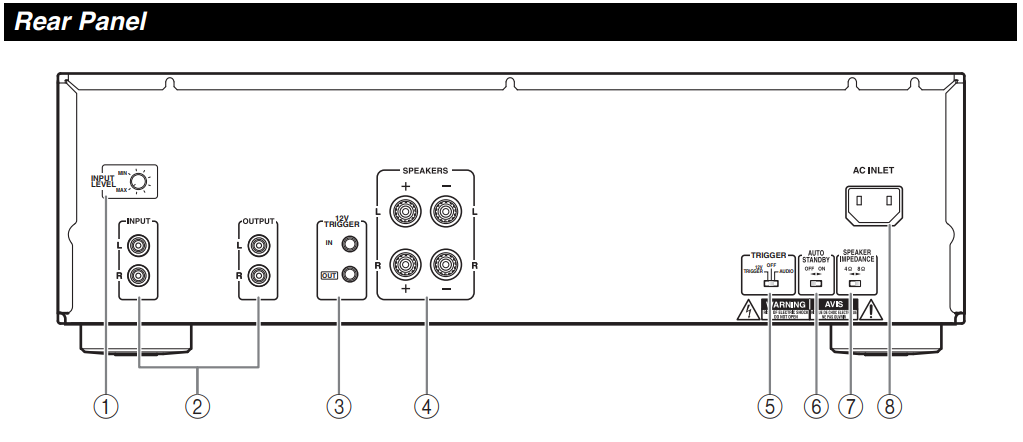

INPUT/OUTPUT jacks
These are the analog audio inputs and outputs. Use an RCA-type audio connection cable to connect the
output jacks of the device to the INPUT jacks on the ADM-20.4. When connecting a control amplifier or
preamplifier, connect the PRE OUT jacks to the INPUT jacks. If you connect the OUTPUT jacks of the ADM-20.4 to the INPUT jacks of another ADM-20.4, the signal input at the INPUT jacks of the ADM-20.4 is also
output from the OUTPUT jacks (Input/Output Link Function).
12V TRIGGER IN/OUT jacks
Connect the 12V TRIGGER IN jack to an AV Receiver that has a 12V TRIGGER output jack. This jack works on between 5 to 12 volts DC. If you want another component to be activated/deactivated by turning on/off the AV receiver connected to the 12V TRIGGER IN jack of the ADM-20.4, connect the 12V TRIGGER input jack of that component to the 12V TRIGGER OUT jack of the ADM-20.4. In this state, the 12V TRIGGER is output when the ADM-20.4 is turned on. Devices can be connected in series using these jacks.
Use 1/8-inch (3.5mm) monaural-type mini-jack connectors or the supplied stereo mini-plug cable.
The tip polarity of the connector is positive.
SPEAKERS terminals
Connect Speakers.
TRIGGER selector
Set this TRIGGER switch before turning on the ADM-20.4. To turn on the ADM-20.4 with the signal input from the 12V TRIGGER IN jack, set the TRIGGER switch to 12V TRIGGER. To turn on the ADM-20.4 with the signal input from the INPUT jack, set the TRIGGER switch to AUDIO (Auto Power On Function). If you do not use Auto Power On Function, set the TRIGGER switch to OFF.
AUTO STANDBY selector
Enables or disables the Auto standby function.
SPEAKER IMPEDANCE selector
Switches the speaker impedance to 4 or 8 .
AC INLET
