The unit allows you to configure advanced settings to provide you with an even better experience.

Switch the input on the TV to that assigned to the unit.
Press Setup on the remote controller to display the Setup menu screen.
Select the item with on the remote controller and press Enter to confirm your
selection.
- Change the initial values for each of the settings with the cursors .
- To return to the previous screen, press Return.
To exit the settings, press Setup.

1. Input/Output Assign

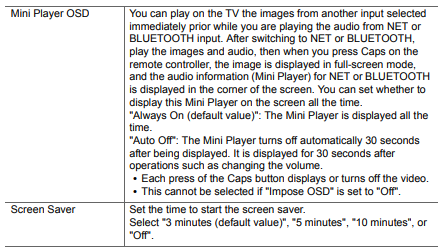

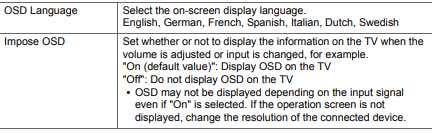

1. TV Out / OSD

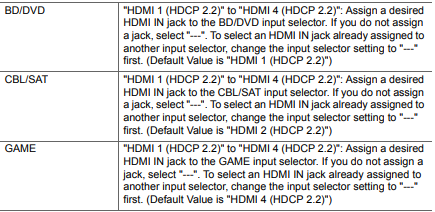

2. HDMI Input
You can change input assignment between the input selectors and HDMI IN jacks.

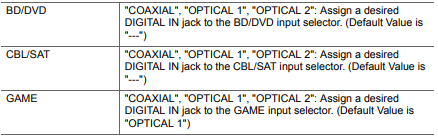

3. Digital Audio Input
You can change input assignment between the input selectors and DIGITAL IN COAXIAL/
OPTICAL jacks. If you do not assign a jack, select "---".

Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, 24 bit.

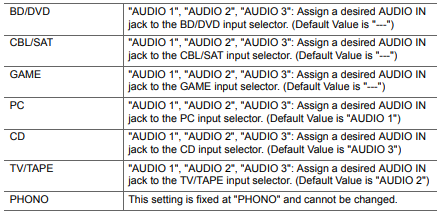

4. Analog Audio Input

You can change input assignment between the input selectors and AUDIO IN jacks. If you do not assign a jack, select "---".

2. Speaker

You can make changes to the connection environment of the speakers and volume level, etc. This setting cannot be selected if headphones are connected or if "5. Hardware" - "HDMI" - "Audio TV Out" is set to "On" so audio is output from the speakers of the TV.

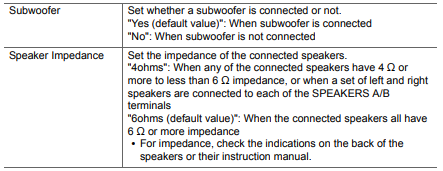

1. Configuration

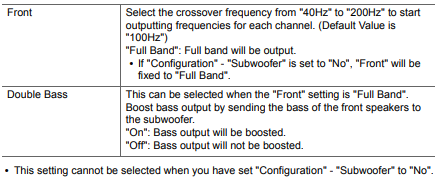

2. Crossover

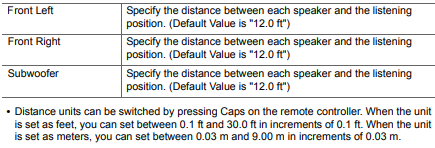

3. Distance

Set the distance from each speaker to the listening position.

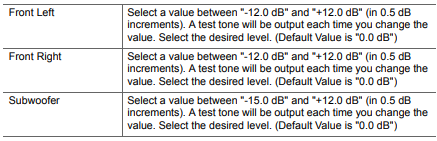

4. Level Calibration

3. Audio Adjust

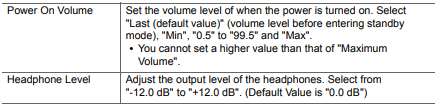

1. Volume

4. Source

1. IntelliVolume

Adjust the volume level difference between the devices connected to the unit. Select the input selector to configure.

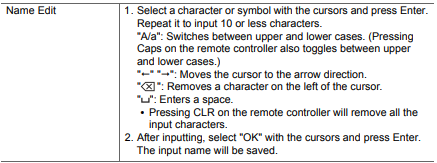

2. Name Edit

Set an easy name to each input. The set name will be shown on the main unit display. Select the input selector to configure.

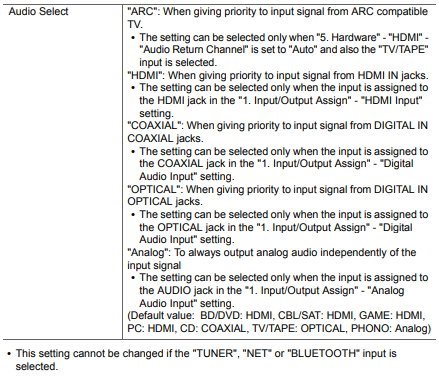

Audio Select

Select the priority for input selection when multiple audio sources are connected to one input selector, such as connections to both the "PC" HDMI IN jack and the "PC" AUDIO IN jack. The setting can be separately set to each input selector. Select the input selector to configure.

Video Select

When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.

5. Hardware

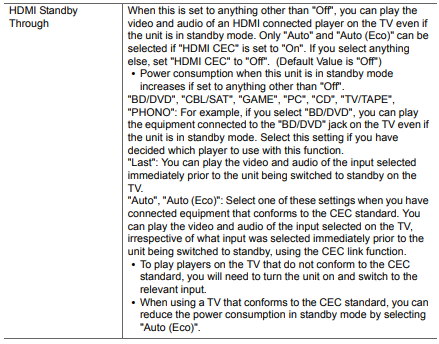

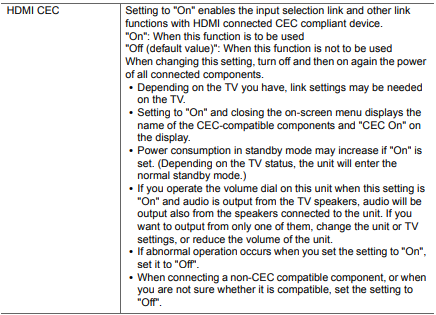

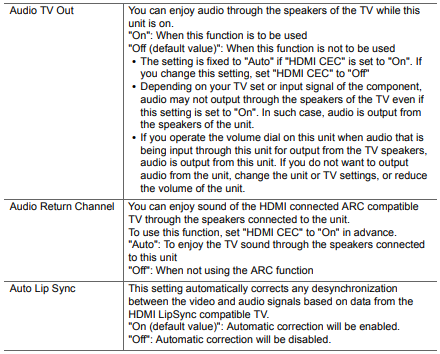

1. HDMI

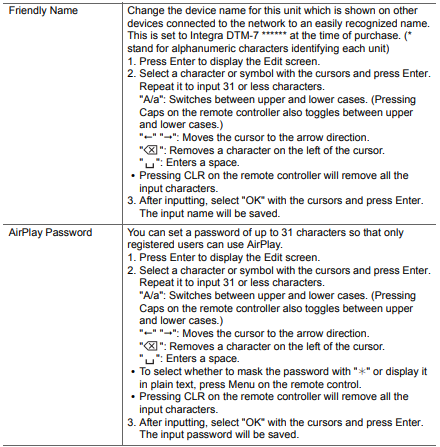

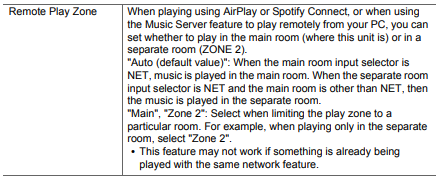

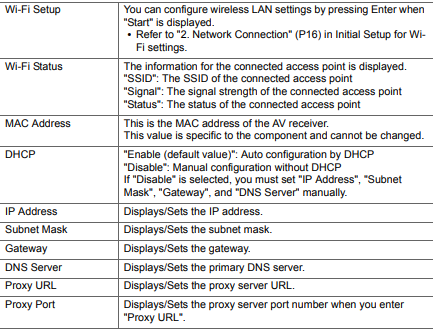

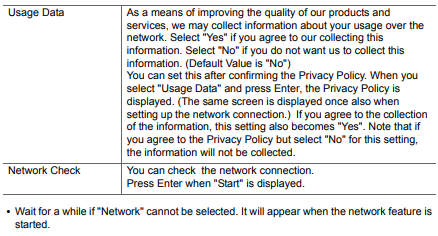

2. Network

When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. Further, to assign fixed IP addresses to each component, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway.

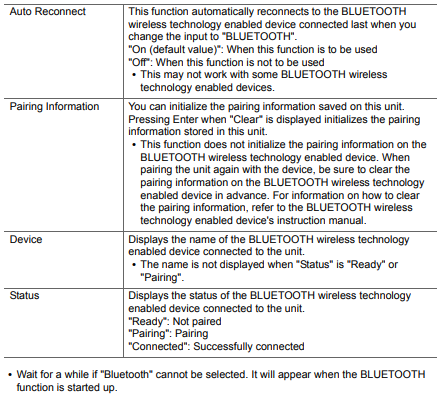

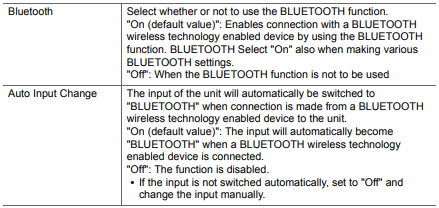

3. Bluetooth

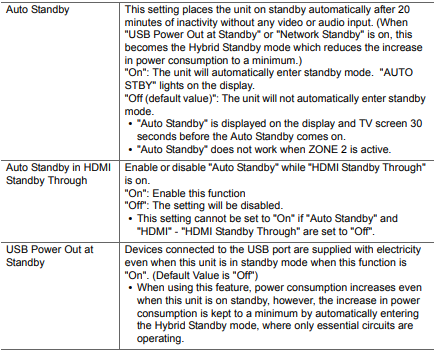

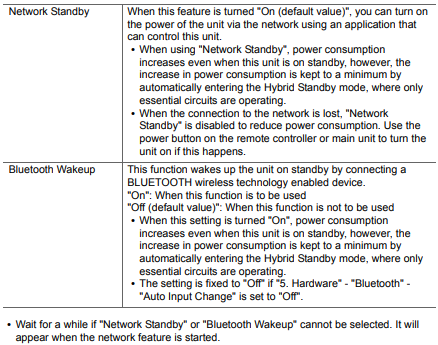

4. Power Management

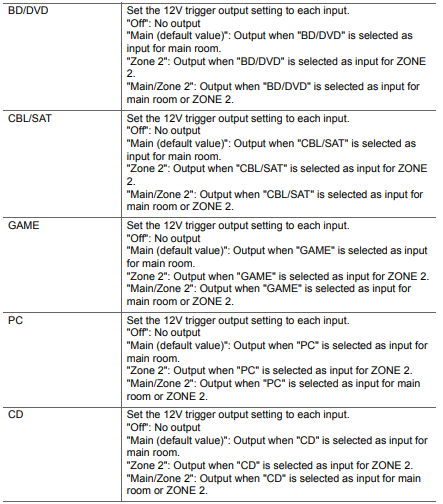

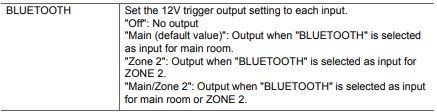

5. 12V Trigger A

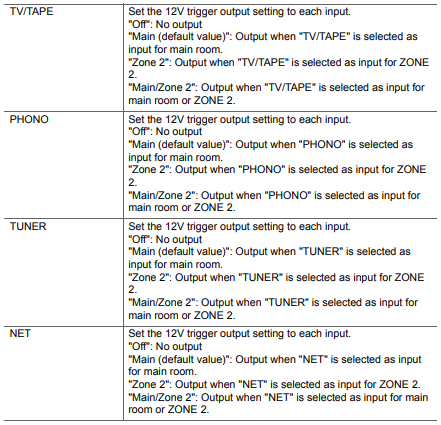

Set when outputting the control signal (maximum 12 V/100 mA) through the 12V TRIGGER OUT A jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

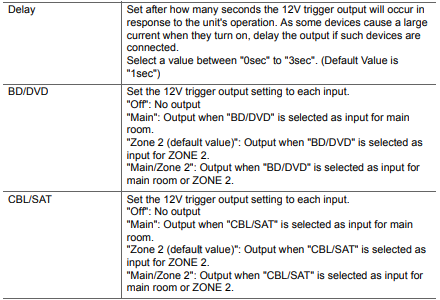

6. 12V Trigger B

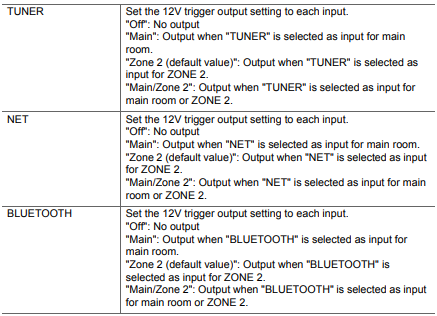

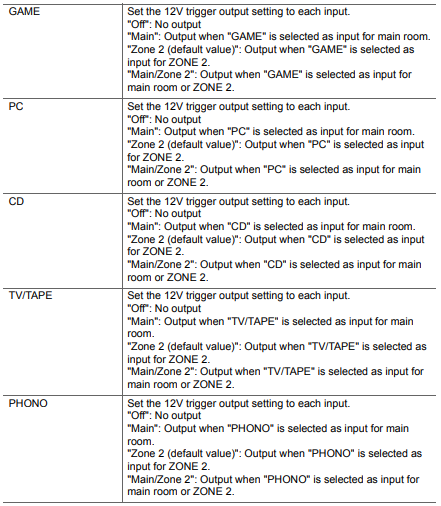

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT B jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.
