DTM-7 - Front and Rear panel and Display

Front Panel

1. On/Standby button.
2. Speaker A/Speaker B button: Used to switch between outputting and turning off output from speakers connected to the SPEAKERS A or B terminal.
3. Remote control sensor: Receives signals from the remote controller.
   - The signal range of the remote controller is within about 16'/5 m, at an angle of 20° on the perpendicular axis and 30° to either side.
4. Hybrid Standby indicator: Lights if the unit enters standby mode when the features are enabled that continue to work when this unit is in standby, such as HDMI Standby Through and Network Standby.
5. Display button: Switches the information on the display. You can display information such as the input source, volume, and input format when pressed repeatedly during play.
6. Display (P5)
7. Setup button: You can show advanced setting items on the TV and display to provide you with an even better experience.
8. Cursors (), Enter button: Select the item with the cursors and press Enter to confirm. Use them to tune to stations when using TUNER.
9. Return button: Returns the display to the previous state during setting.
10. Master Volume
11. Phones jack: Connect stereo headphones with a standard plug (Ø1/4z/6.3 mm diameter).
12. Dimmer button: You can adjust the brightness of the display in three steps. It cannot be turned off completely.
13. Zone 2 button: Controls the multi-zone function.
14. Off button: Switches the multi-zone function off.
15. Input dial: Switches the input to be played.
16. Bass dial: Adjusts the bass.
17. Treble dial: Adjusts the treble.
18. Balance dial: Adjusts the balance of the sounds output from the left and right speakers.
19. Memory button: Used to register AM/FM radio stations.
    Menu button: Used to display the menu.
20. Tuning Mode button: Switches tuning to an AM/FM station between automatic tuning and manual tuning.
    Play/Pause button: Used for play operations when playing Music Server or USB.
21. Preset buttons: Used to select AM/FM radio stations.
    Skip () buttons: Used for play operations when playing Music Server or USB.
22. USB jack: A USB storage device is connected so that music files stored in it can be played. You can also supply power (5 V/1 A) to USB devices with a USB cable.

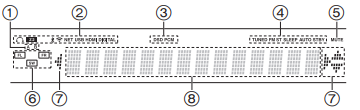

Display

1. The currently selected speaker system lights.
2. Lights in the following conditions.
   : When headphones are connected
   Z2: ZONE 2 is on.
   : When connected via BLUETOOTH
    When connected by Wi-Fi
   NET: When "NET" is selected with the input selector and the unit is connected to the network. It will flash if the connection to the network is not correct.
   USB: When "NET" is selected with the input selector and the unit is connected by USB and the USB device is selected. Flashes if the USB is not properly connected.
   HDMI: HDMI signals are input and the HDMI input selector is selected.
   DIGITAL: Digital signals are input and the digital input selector is selected.
3. Lights according to the type of input digital audio signals.
4. Lights in the following conditions.
   TUNED: Receiving AM/FM radio
   FM ST: Receiving FM stereo.
   SLEEP: Sleep timer has been set.
   AUTO STBY: Auto Standby has been set.
5. Flashes when muting is on.
6. Speaker/Channel display: Displays the output channel of the speakers.
7. This may light when performing operations with the "NET" input selector.
8. Displays various information of the input signals.

Rear Panel

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
2. ETHERNET jack: Connect to the network with an Ethernet cable.
3. USB jack: A USB storage device is connected so that music files stored in it can be played. You can also supply power (5 V/500 mA) to USB devices with a USB cable.
4. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH wireless technology enabled device. Adjust their angles according to the connection status.
5. TUNER AM/FM 75 terminals: The supplied antennas are connected.
6. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a TV.
7. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an AV component.
8. REMOTE CONTROL jack: An Onkyo product with RI jack can be connected and synchronized with this unit.
9. IR IN/OUT terminals: Connected to the multi-room remote control kit. (*)
10. 12V TRIGGER OUT A/B jacks: Allows you to connect a device with 12V trigger input jack to enable link operation between the device and the unit. (*)
11. RS232 port: For connection to the home control system. (*)
    (*)Special devices or cable connections are necessary to use the control functions 9 to 11.
    Contact the specialized stores for more information.
12. AC INLET: Connect the supplied power cord.
13. GND jack: The ground wire of the turntable is connected.
14. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
15. ZONE 2 LINE OUT jacks: Output audio signals with an analog audio cable to a pre-main amplifier in a separate room (ZONE 2).
16. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each of the SUBWOOFER
    PRE OUT jacks.
17. SPEAKERS jacks: Connect speakers with speaker cables. (Compatible with banana plugs) You can
    connect a set of left and right speakers to each of the A/B terminals.
