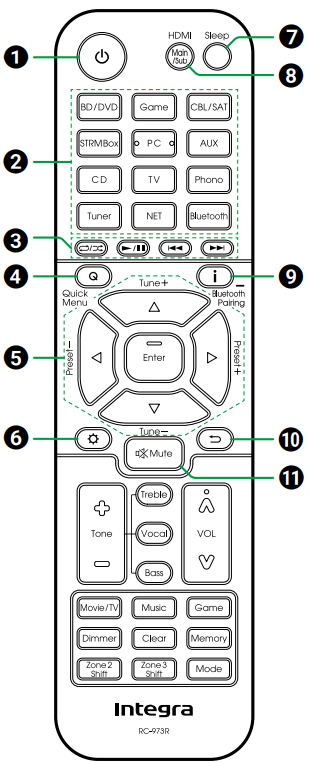

DRX-5.4 Remote Controller



On/Standby button
Input selector buttons: Switches the input to be played.
Play buttons: Used for playback operations for the Music Server ( →p107) or USB device
( →p105). Also, switching to "CEC MODE" with "19. Mode button" allows you to operate an HDMI
CEC function-enabled AV component. (Some devices may not be operated.)
Q (Quick Menu) button: Pressing this button during playback allows you to make settings
such as "HDMI" and "Audio" quickly on the TV screen while playing. ( →p83)
Cursor buttons and Enter button: Select an item with the cursors, and press Enter to confirm
your selection. Pressing button allows you to switch the screen when a music folder list or
file list is not displayed on one screen on the TV.
button: Displays advanced setting items on the TV or the display to have a more enjoyable
experience with this unit. ( →p115)
Sleep button: You can allow the unit to enter standby automatically when the specified time
has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not
want to turn the unit to standby automatically, select "Off". You can also set this by pressing
button and selecting "6. Hardware" - "Power Management" - "Sleep Timer" ( →p143) on the
Setup menu.
HDMI Main/Sub button: Select the HDMI OUT jack to output video signals from "MAIN", "SUB",
and "MAIN+SUB".
button: Switches the information on the display and is used to operate RDS ( →p78).
Also, when the "BLUETOOTH" input selector is selected, pressing and holding this button for 5

seconds or more will switch to the pairing mode.
button: Returns the display to the previous state while setting.
Mute button: Temporarily mutes audio. Press the button again to cancel muting.

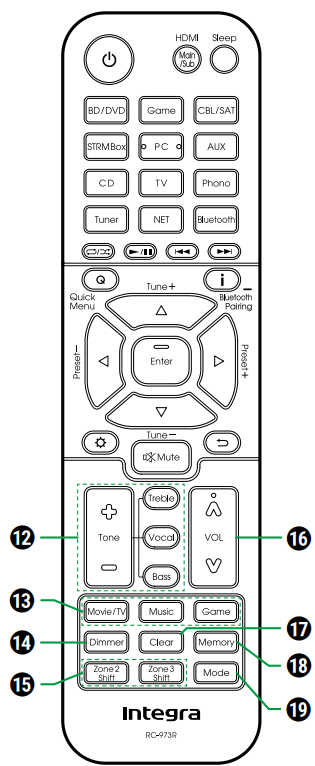

Tone buttons: Adjusts the sound quality. Press "Treble", "Bass", or "Vocal" to select what you
want to adjust, then adjust with + and -. Treble/Bass button: You can adjust the sound quality of the speakers.
1.Press Treble or Bass to select the content to  adjust.
Treble: Enhances or moderates the high-tone range of the speakers.
Bass: Enhances or moderates the low-tone range of the speakers.
2. Press + or - to adjust.
Vocal button: Emphasizes movie dialogues and music vocals to listen to them more easily.
It is effective to movie lines in particular. Also, it exerts the effect even if the center speaker is not
used. Select a desired level from "1" (low) to "5" (high).
1. Press Vocal.
2. Press + or - to adjust.
• Depending on the input source or listening mode setting, selection is not possible, or the
desired effect may not be achieved.
Listening Mode buttons: Selects a listening mode ( →p81, p181).
Dimmer button: Switches the brightness of the display with three levels. It cannot be turned off
completely.
Zone 2/Zone 3 Shift button: Used to control the multi-zone function ( →p99).
VOLUME buttons
Clear button: Deletes all characters you have entered when entering text on the TV screen.
Memory button: Used to register AM/FM radio stations. ( →p80)
Mode button: Switches between automatic tuning and manual tuning for AM/FM stations
( →p77). Also, when an HDMI CEC function enabled AV component is connected to this unit, you can switch "3. Play buttons" between "CEC MODE" and "RCV MODE" (normal mode).
