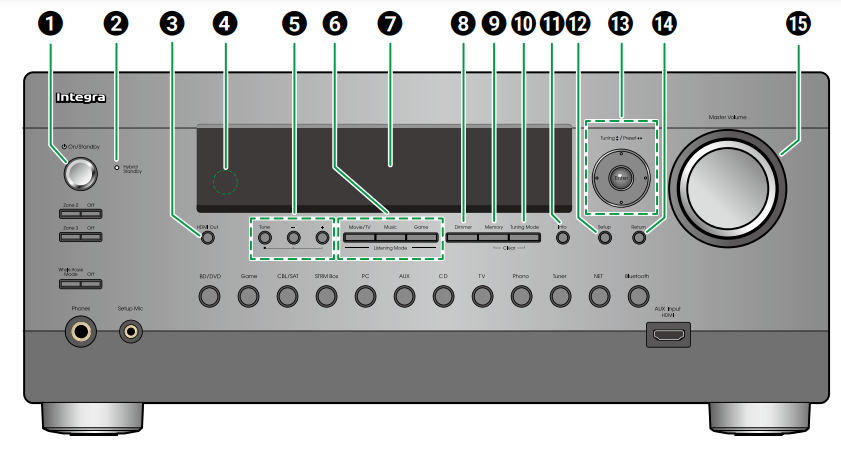

DRX 5.4- Front Panel

1 On/Standby button
2 Hybrid Standby indicator: Lights up when any of the following functions is working or enabled
in standby state of this unit. When this indicator is lighting, the power consumption in standby
state increases, however, the increase in power consumption is minimized by entering the Hybrid
Standby mode where only the essential circuits operate.

    – HDMI CEC ( →p136)
    – HDMI Standby Through ( →p136)
    – USB Power Out at Standby ( →p143)
    – Network Standby ( →p143)
    – Bluetooth Wakeup ( →p144)
3 HDMI Out button: Select the HDMI OUT jack to output video signals. ( →p118)
4 Remote control sensor: Receives signals from the remote controller.

   • The reception range of the remote controller is within a distance of approx. 16´/5 m, and
      an angle of 20° in vertical direction and 30° to right and left.
5 Tone button: You can adjust the sound quality of the speakers. Press the Tone button to select an
item to adjust from "Bass", "Vocal" and "Treble", and press + and - to adjust.
6 Listening Mode button: Switches the listening mode ( →p81) by pressing "Movie/TV", "Music" and "Game" button repeatedly.
7 Display ( →p13)

8 Dimmer button: Switches the brightness of the display with three levels. It cannot be turned off
completely.
9 Memory button: Used to register AM/FM radio stations. ( →p80)
10 Tuning Mode button: Used to switch between automatic tuning and manual tuning for AM/FM
stations. ( →p77)
11 Info button: Switches the information on the display. ( →p82)
12 • The reception range of the remote controller is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to right and left.
13 • The reception range of the remote controller is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to right and left.
14 Return button: Returns the display to the previous state while setting.
15 Master Volume
