When you turn the unit on for the first time after purchase, the Initial Setup
screen is automatically displayed on the TV to allow you to make settings
required for startup using simple operations following on-screen guidance.

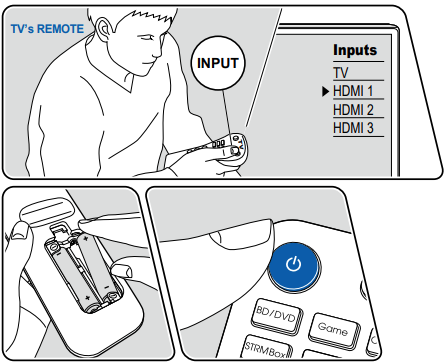

1. Switch the input of the TV to the input connected to the unit.
2. Put batteries into the remote controller of this unit.
3. Press [POWER] on the remote controller to turn the unit on.
4. When the language selection screen is displayed on TV, select the language
with the cursors ^/v and press Enter.
- Select the item with the cursors of the remote controller, and press Enter to
confirm your selection. To return to the previous screen, press [RETURN]. - If you have terminated the Initial Setup halfway, turn this unit to standby mode
and turn the power on again. Then you can display the Initial Setup again.
Unless you do the Initial Setup to the end or select "Never Show Again" in
the screen shown after setting the Network Connection, the wizard screen is
shown every time the power is turned on. - To perform the Initial Setup again after the setting is completed, press [SETTING],
select "8. Miscellaneous" - "Initial Setup", and press Enter.
Keyboard Input
To switch between upper and lower cases, select "A/a" on the screen, and press
Enter on the remote controller.
To select whether to mask the password with "*" or display it in plain text, press
Memory on the remote controller. Pressing Clear on the remote controller will
delete all the input characters.
1. Speaker Setup
1. Select the connected speaker configuration and press Enter.
Note that the image on the screen changes each time you select the number
of channels in "Speaker Channels".
2. The speaker combination selected in step 1 is displayed. "Yes" is displayed
for the selected speakers. If the setting is correct, press Enter.
3. Select "Next" and press Enter. Then a test tone is output from each speaker
to confirm the connection. Selecting each speaker with the cursors ^/v will
output the test tone. Press Enter after confirmation.
4. If there is no problem with the speaker connection, select "Next" and press
Enter. To return to "Speaker Setup", select "Back to Speaker Setup" and
press Enter.
2. AccuEQ Room Calibration
Place the supplied speaker setup microphone in the listening position, measure
the test tones emitted by the speakers, then the unit automatically sets the
optimum volume level for each speaker, the crossover frequencies, and
the distance from the listening position. This also automatically adjusts the
equalizers for the speakers, and enables correction of distortion caused by the
acoustic environment of the room.
- It takes between 3 and 12 minutes for calibration to be completed. Each
speaker outputs the test tone at high volume during measurement, so be
careful of your surroundings. Also, keep the room as quiet as possible during
measurement. - If you connect a subwoofer, check the power and volume of the subwoofer.
Set the subwoofer volume to more than half. - If the power of this unit suddenly turns off, the wires in the speaker cables
have touched the rear panel or other wires, and the protection circuit is
working. Twist the wires again securely, and make sure they do not stick out
of the speaker terminals when connecting.
1. Place the supplied speaker setup microphone at the listening position, and
connect it to the Setup Mic jack on the main unit.
When placing the speaker setup microphone on a tripod, refer to the
illustration.
2. Confirm a test tone is output from the subwoofer and press Enter.
3. Press Enter to output test tones from each speaker, and the connected
speakers and the noise in the surrounding environment are automatically
measured.
4. The measurement results in step 3 are displayed. If there is no problem in
the detection result of the speaker, select "Next" and press Enter to output
the test tone again to automatically set the settings such as volume level,
crossover frequency, etc., to their optimum. (The test tone is automatically
output when 10 seconds has elapsed without any operation.)
- When an error message is displayed or when the connected speakers cannot be detected, perform re-measurement by selecting "Retry" and pressing Enter.
- When it cannot be resolved by performing the re-measurement, confirm if the speakers are connected correctly. If there is any problem with the speaker connection, perform the connection after disconnecting the power cord
5. Once the measurement is completed, it is possible to perform the measurement in 8 additional listening positions. To perform the measurement, select "Next" and press Enter, then follow the instructions. To not perform the measurement, select "Finish (Calculate)" and press Enter.
- After each listening position is detected, select “Finish (Calculate)” and press Enter to complete the detection process.
6. Disconnect the speaker setup microphone.
3. Multi Zone Sound Check
Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in addition to the main room.
4. ARC Setup
If you have connected a TV that supports ARC, select "Yes" and press Enter.
5. Network Connection
1. A confirmation screen asking you whether to agree to the privacy statement
is displayed during network setting. If you agree, select "Accept" and press
Enter.
2. Select the type of connection to the network. To use the Chromecast built-in
function to connect, select "Yes" and press Enter. The Google Home app is
required to use the Chromecast built-in function. Download the Google Home
app from Google Play or the App Store to your smart phone or tablet.
- Google Home app can be used on the following operating systems. (As of
April 2020)
Android™: Android 4.4 or later.
iOS: iOS 10.0 or later. Compatible with iPhone®, iPad®, and iPod touch®
If you select "No", you can connect using either wired LAN or Wi-Fi.
"Wired": Use a wired LAN to connect to a network.
"Wireless": Wi-Fi connection using an access point such as a wireless LAN
router.
- There are two methods for Wi-Fi connection.
"Scan Networks": Search for an access point from this unit. Find out the
SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS
device with this unit. - If you select "Scan Networks", there are another two types of connection
methods. Check the following.
"Enter Password": Enter the password (or key) of the access point to
connect.
"Push Button": If the access point is equipped with an automatic setting
button, you can connect without entering the password. - If the SSID of the access point is not displayed, select "Other..." with the
cursor > on the SSID list screen, press Enter, and then follow the on-screen
instructions.
