DRX-8.4 - Connecting BD/DVD or Game console via HDMI

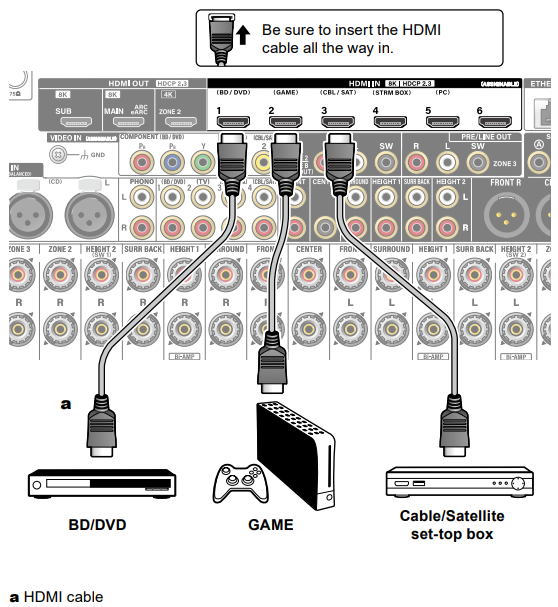

This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc. and the HDMI Standby Through function that can transmit video and audio signals of the AV component to the TV even if this unit is in standby mode.

• Settings are required when 8K high-quality video is to be played.  Also, use an HDMI cable that supports 8K video.
• The corresponding resolution is different depending on the HDMI jack connected.

Note

• To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

(*) The HDMI CEC function: This function enables various linking operations with CEC-compliant devices, such as switching input selectors interlocking with a CEC-compliant player, switching audio output between TV and this unit or adjusting the volume using the remote controller of a CEC-compliant TV,
and automatically switching this unit to standby when the TV is turned off.
