DRX-3.4 - Multi-Zone

You can enjoy 2 ch audio in the separate room (ZONE 2/ZONE 3) while performing playback in the main room (where this unit is located). The same source can be played
back in the main room and ZONE 2/ZONE 3 simultaneously. Also, different sources can be played back in both rooms.

For the "NET" or "BLUETOOTH" input selector, you can select only the same source for the main room and separate room. If you select "NET" in the main room and then select "BLUETOOTH" in the separate room, the main room setting switches to "BLUETOOTH".

You cannot select different stations of AM/FM broadcasts for the main room and separate room.
Using Integra Control Pro is convenient for operations of multi-zone playback. You can use it on mobile devices, such as a smartphone and tablet to which Integra Control Pro (available on iOS or Android™) has been downloaded.

Zone 2 Playback

In remote controller operation, while pressing and holding the Zone 2 Shift
button, press other buttons for operation.

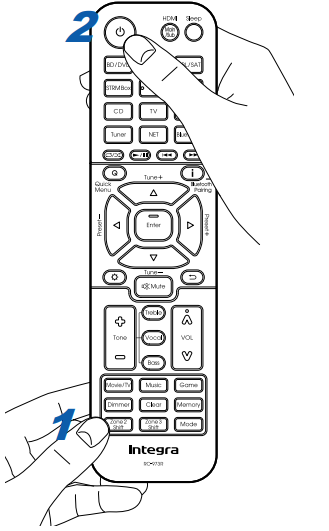

1. While pressing and holding the Zone 2 Shift button on the remote controller,
point the remote controller at this unit and press [POWER].

• "Z2" on the display of the main unit lights up.

2. While pressing and holding the Zone 2 Shift button on the remote controller,
press the input selector of the input source you want to play in the separate
room. To control on the main unit, press the Zone 2 button, and then within
8 seconds, press the input selector button of the input to be played in the
separate room. To play the same source in the main room and separate
room, press the Zone 2 button of the main unit twice.

3. When using the ZONE 2 PRE/LINE OUT connection, adjust the sound
volume on the integrated amplifier in the separate room. For the ZONE
speaker output, while pressing and holding the Zone 2 Shift button on the
remote controller, adjust the volume with the volume button. To do this on
the main unit, press the Zone 2 button, and then within 8 seconds, adjust the
volume using the Master Volume dial.

• When connecting the power amplifier set "7. Multi Zone" - "Zone 2" -
"Output Level" to "Variable". If it is not set, a large volume is
output and the power amplifier, speakers, etc. may be damaged.

• The sound quality of the power amplifier connected in the separate room
can also be adjusted. Press the Zone 2 button of this unit, and then press
the Tone button within 8 seconds. Press + and - button for adjustment.

• Information of a connected device can be displayed on the TV in the
separate room. Press the i button while pressing and holding the Zone 2
Shift button on the remote controller.

• If you turn the unit to standby during multi-zone playback, the Z2 indicator is
dimmed, and the playback mode is switched to playback in a separate room
only. Setting ZONE 2 to on while the unit is in standby also switches the
playback mode to playback in the separate room only.

• The audio from externally connected AV components can be output to ZONE
2 only when the audio is analog or 2 ch PCM signal. When the AV component
is connected to this unit with an HDMI cable, digital coaxial cable or digital
optical cable, change the audio output of the AV component to the PCM
output.

• When video and audio via HDMI input are output to ZONE 2, set "1. Input/
Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" to "Use" on the
Setup menu.

• DSD audio signals cannot be output to ZONE 2 with the "NET" input selector.

• If ZONE 2 is on, power consumption during standby will increase.

• This function turns off if you use "Transmitting audio from this unit to
BLUETOOTH wireless technology enabled devices".

To disable the function: While pressing and holding the Zone 2 Shift button on
the remote controller, press [POWER].

Zone 3 Playback

In remote controller operation, while pressing and holding the Zone 3 Shift
button, press other buttons for operation. Settings are required to playback a
source in ZONE 3.

When outputting from the speakers: Set "2. Speaker" - "Configuration" -
"Zone Speaker" in the Setup menu to "Zone 2/Zone 3".

When outputting from the integrated amplifier: Set "2. Speaker" -
"Configuration" in the Setup, to one of the following.
– Set "Speaker Channels" to "2.1 ch", "3.1 ch", "4.1 ch", or "5.1 ch"
– Set "Speaker Channels" to "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or "5.1.2 ch", and
set "Bi-Amp" and "Zone Speaker" to "No"

1. While pressing and holding the Zone 3 Shift button on the remote controller,
point the remote controller at this unit and press [POWER].

• "Z3" on the display of the main unit lights up.

2. While pressing and holding the Zone 3 Shift button on the remote controller,
press the input selector of the input source you want to play in the separate
room. To control on the main unit, press the Zone 3 button, and then within
8 seconds, press the input selector button of the input to be played in the
separate room. To play the same source in the main room and separate
room, press the Zone 3 button of the main unit twice.

3. While pressing and holding the Zone 3 Shift button on the remote controller,
adjust the volume with the volume button. To do this on the main unit, press
the Zone 3 button, and then within 8 seconds, adjust the volume using the
Master Volume dial.

• When connecting the power amplifier set "7. Multi Zone" - "Zone 3" -
  "Output Level" to "Variable". If it is not set, a large volume is
  output and the power amplifier, speakers, etc. may be damaged.

• If you turn the unit to standby during multi-zone playback, the Z3 indicator is
dimmed, and the playback mode is switched to playback in a separate room
only. Setting ZONE 3 to on while the unit is in standby also switches the
playback mode to playback in the separate room only.

• For ZONE 3 output, audio from externally connected AV components can be
output only when it is an analog audio signal.

• DSD audio signals cannot be output to ZONE 3 with the "NET" input selector.

• If ZONE 3 is on, power consumption during standby will increase.

• This function turns off if you use "Transmitting audio from this unit to
BLUETOOTH wireless technology enabled devices".

To disable the function: While pressing and holding the Zone 3 Shift button on
the remote controller, press [POWER].
