HDMI cable connection

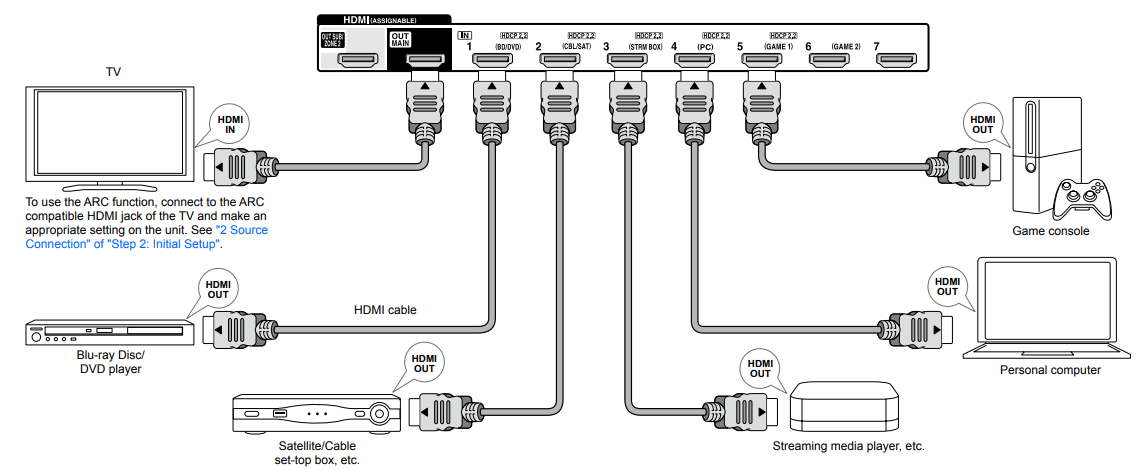

Refer to the above figure and connect the player to the HDMI jack on the back of this unit. For example, connect a Blu-ray Disc Player to the HDMI IN1 (BD/DVD) jack. To play the player, press the Input Selector button on the remote controller with the same name as the jack to which you connected the player so that the input on the unit is selected.

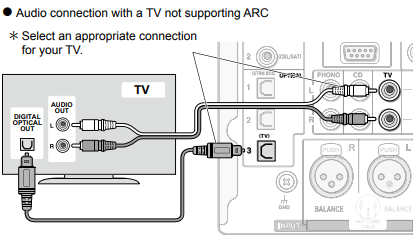

To connect the TV and the unit, connect the HDMI OUT MAIN jack of the unit and the HDMI IN jack of the TV using an HDMI cable. With this connection, it becomes possible to display the setting screen of the unit on the TV or transmit video/audio signals from the player to the TV. If your TV supports ARC (Audio Return Channel), it is possible to play the TV sound with the AV controller's speakers with this connection only. If your TV does not support ARC, you need, in addition to the HDMI OUT MAIN jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL
IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the AUDIO IN TV jack of the unit.
The unit supports the HDMI Standby Through function that allows transmission from players to the TV even if the unit is in standby. You have to modify the settings to enable the input selection link with CEC (Consumer Electronics Control) compliant device, connection with ARC compatible TV, and HDMI Standby Through function.
- Another TV can be connected to the HDMI OUT SUB jack. In this case, press the HDMI Out button
on the main unit several times to display "SUB" or "MAIN+SUB" and select the output method. You have to modify the settings to enable the CEC functions, such as ARC, for the TV connected to the HDMI OUT SUB jack. - To enjoy HDCP2.2 protected video, connect the player to one of the HDMI IN1 to IN5 jacks and connect the HDMI output jack on this unit and to a HDCP2.2 compatible HDMI input jack on the TV. You will be unable to view images protected by HDCP2.2 if your TV does not have a HDCP2.2 compatible input jack.
- To play 4K or 1080p video, use a high speed HDMI cable or high speed HDMI with Ethernet cable.
Connecting Components without HDMI
If your AV component does not have HDMI jack, use an available jack of your component for cable connection with this unit.
＊ It is possible to change assignment of the input jacks and input selector buttons.
■ Video signal connection
The unit has a video upconversion function. For details, see the next section.
A TV with component video input jacks or a player with component video output jacks can be connected.
＊ Only images input through the COMPONENT VIDEO IN jacks can be output through the COMPONENT VIDEO OUT jacks.
A TV with composite video input jacks or a player with composite video output jacks can be connected.
＊ Only images input through the VIDEO IN jack (composite) can be output through the VIDEO OUT jack.
■ Audio signal connection A player with a digital audio out jack can be connected.
A player with analog audio out jacks can be connected. When using jacks
and
for video input, connect to the audio input jacks corresponding to the jacks connected at
and
. (For example, when video input connection is to the 1 BD/DVD jack, the audio input connection should also be to the
BD/DVD jacks.)
Use an XLR balanced cable to transmit analog audio. An XLR balanced cable, which is less affected by noise when extended over a long distance, is suitable for long distance transmission.
＊ Refer to the pin layout below the Balance jack when connecting.
＊ You have to make an appropriate setting to play audio of the device connected to this jack. For details, see "4. Source" - "Audio Select" in "Advanced settings (Setup Menu)" in the Advanced Manual.
Connect a turntable that uses an MM type cartridge and does not have a built-in audio equalizer. If the connected turntable has a built-in audio equalizer, connect it to the 4 analog audio input jack.
- If it uses an MC type cartridge, install an audio equalizer compatible with MC type cartridge between the unit and the turntable by connecting it to the 4 analog audio input jack. For details, refer to the turntable's instruction manual.
- If the turntable has a ground wire, connect it to the GND terminal of this unit. If connecting the ground wire increases noise, disconnect it.
