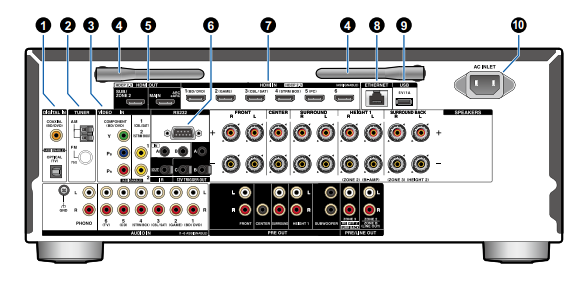

DRX-3.4 - Rear Panel

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio
signals with a digital optical cable or digital coaxial cable.

2. TUNER AM/FM terminal: Connect the supplied antennas.

3. COMPONENT VIDEO IN jacks: Input AV component video signals with a
component video cable. (Compatible only with 480i or 576i resolution.)
VIDEO IN jacks: Input AV component video signals with an analog video cable.

4. Wireless antenna: Used for WI-Fi connection or when using a BLUETOOTHenabled device. Adjust the angles according to the connection status.

5. HDMI OUT jacks: Transmit video signals and audio signals with an HDMI
cable connected to a monitor such as a TV or projector.

6. RS-232 port: Connect a home control system equipped with an RS-232 port.
For adopting a home control system, contact the specialized stores.

7. HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable
connected to an AV component.

8. ETHERNET port: Connect to the network with a LAN cable.

9. USB port: Connect a USB storage device to play music files. You
can also supply power (5 V/1 A) to USB devices with a USB cable.

10. AC INLET: Connect the supplied power cord.

11. GND terminal: Connect the ground wire of the turntable.

12. AUDIO IN jacks: Input AV component audio signals with an analog audio
cable.

13. IR IN A/B, IR OUT port: Connect a remote control receiver unit.

14. 12V TRIGGER OUT A/B/C jack: Connect a device equipped with a 12V trigger
input jack to enable power link operation between the device and this unit.

15. PRE OUT jacks: Connect to a power amplifier.

16. SUBWOOFER PRE OUT jacks: Connect a
powered subwoofer with a subwoofer cable.
Up to two powered subwoofers can be
connected. The same signal is output from each
SUBWOOFER PRE OUT jack.

17. ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplifier in a separate room
(ZONE 3).
HEIGHT 2 PRE OUT jacks: Connect to a power
amplifier.
SURR BACK PRE OUT jacks: Connect to a
power amplifier.

18. ZONE 2 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplifier in a separate room
(ZONE 2).
ZONE B LINE OUT jacks: Simultaneously
output the same audio source as the speakers
(ZONE A) connected to this unit by connecting
this unit to wireless headphones, wireless
speaker transmitter, etc., using an analog audio
cable.

19. SPEAKERS terminals: Connect speakers with
speaker cables. (North American models support
banana plugs. Use a plug 4 mm in diameter.) Y
plug connection is not supported.
