CDC - 3.4 - Front and rear panel and display

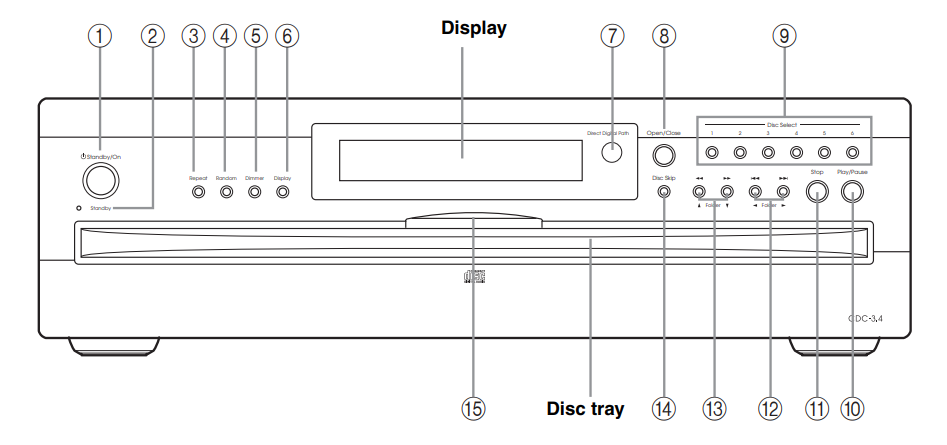

Front Panel

Standby/On button
This button is used to set the CDC-3.4 to On or Standby.
Standby indicator
This indicator lights up when the CDC-3.4 is in Standby mode.
Repeat button
This button is used with the Repeat function.
Random button
This button is used with the Random function.
Dimmer button
This button is used to adjust the display brightness.
Display button
This button is used to display elapsed, remaining, and total time information about the current disc or track and various information about MP3 tracks.
Remote control sensor
This sensor receives control signals from the remote controller.
Open/Close button
This button is used to open and close the disc tray.
Disc Select buttons
These buttons are used to select discs. Playback starts automatically when a disc is selected with one
of these buttons.
Play/pause button
This button is used to start and pause playback.
Stop button
This button is used to stop playback.
& Folder buttons
These buttons are used to select the previous and next tracks and to navigate folders on MP3 discs.
& Folder buttons
These buttons are used for fast reverse and fast forward and to navigate folders on MP3 discs.
Disc Skip button
This button is used to turn the disc tray when loading or removing discs and to select discs for playback.
Disc tray light
This light illuminates the disc tray. It comes on when the CDC-3.4 is turned on and gets brighter when the disc tray is open.

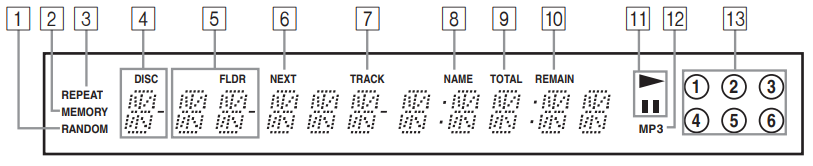

Display

RANDOM indicator
MEMORY indicator
REPEAT indicator
DISC indicator
The number of the current disc appears here.
FLDR (FOLDER) indicator
While stopped, the total number of folders on the
current MP3 disc are displayed. During playback,
the number of the current folder is displayed.
NEXT indicator
This indicator appears when using the Next Selection function.
TRACK indicator
While stopped, the total number of tracks on the current disc are displayed. During playback, the
number of the current track is displayed.
NAME indicator
This indicator appears when the current disc is an MP3 disc and a name (disc, folder, track) is being
displayed.
TOTAL indicator
This indicator appears when the total remain time is displayed.
REMAIN indicator
Play / Pause indicator
MP3 indicator
Disc indicators 1–6



Rear Panel

ANALOG AUDIO OUTPUT
These RCA/phono connectors can be connected to the analog audio inputs on a hi-fi amp or AV
receiver.
COAXIAL & OPTICAL DIGITAL AUDIO OUTPUT
These connectors can be used to connect a CD-R, MiniDisc, DAT recorder, digital amp, or other
equipment with digital inputs.
 REMOTE CONTROL
These (Remote Interactive) connectors can be connected to the connectors on your other Integra/Onkyo AV components for interactive control.
To use you must also make analog audio connections (RCA/phono) between the CDC-3.4 and
your other Integra/Onkyo equipment.
AC INLET
The supplied power cord is connected here. The
other end of the power cord should be connected to
a suitable wall outlet.
RS 232
This RS-232 port can be connected to an external
controller.
IR IN/OUT (13)
The IR IN connector can be used to connect a commercially available IR receiver, which can be used
to pickup signals from the remote controller when the CDC-3.4 is located in another room, installed in
a rack, or is out of range of the remote controller. The IR OUT connector can be used to connect a
commercially available IR emitter, which can be used to pass remote controller signals received by
the IR IN along to other AV components.
