DRX-3.3 - Quick Menu

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

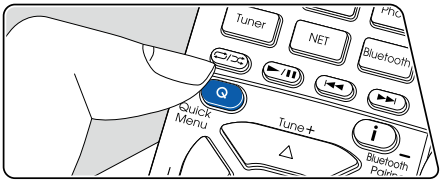

You can make the settings on the TV screen during playback. Press Q on the
remote controller to display the Quick Menu.

Select the item with the cursors ^/v of the remote controller, and press the
Enter button to confirm your selection.
Use the cursors to change the settings.

• To return to the previous screen, press [RETURN].
• To exit the settings, press Q.

HDMI

HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN",
"SUB", and "MAIN+SUB".
A/V Sync: If the video is behind the audio, you can delay the audio to offset the
gap. The setting can be set for each input.

• It cannot be set if the listening mode is Direct.

Audio Return Channel: You can enjoy the sound of the HDMI-connected ARCcompatible TV through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.



Audio

Music Optimizer: Improve the quality of the compressed audio. Playback sound
of lossy compressed files such as MP3 will be improved. The setting can be set
for each input. This works in signals whose sampling frequencies are 48 kHz or
less. The setting is not effective in the bitstream signals.

• It cannot be set if the listening mode is Direct.

Late Night: Enable small sounds to be easily heard in detail. It is useful when
you need to reduce the volume while watching a movie late night.

• This function cannot be used in the following cases.
  – When playing Dolby Digital Plus or Dolby TrueHD with "Loudness
  Management" set to "Off"
  – When the input signal is DTS:X, and "Dialog Control" is not 0 dB
  – When the input signal is Analog/DSD and the listening mode is Direct

Zone B: Select a method of outputting audio to ZONE B from among "Off",
"On (A+B)" and "On (B)".

• In the following cases, "Zone B" cannot be selected.
  – When ZONE 2 is On
  – When "2. Speaker" - "Configuration" - "Zone 2 Preout" on the Setup menu
  is set to an item other than "Zone B".

Digital Filter: You can switch the type of digital filter in the AUDIO DAC (digital
analog converter). You can choose "Slow" (gives the sound a soft and fluid
feel), "Sharp" (gives the sound more structure and firmer feel), "Short" (gives
the sound a feeling of a quick start and moving forward), or "AUTO" (auto). The
setting can be separately set to each input selector. This can be set when the
sampling frequency is 44.1 kHz or more.



Room EQ

It cannot be set if the listening mode is Direct.

AccuEQ: Enable or disable the equalizer function that corrects for sound
distortion caused by the acoustic environment of the room.
On (All Ch): EQ that corrects according to the room acoustics acquired with the
AccuEQ calibration is applied to all channels.
On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the
Front Speakers. EQ correction for the Front Speakers is turned off.

• The setting can be separately set to each input selector.

Manual Equalizer: Select "Preset 1" to "Preset 3" configured in "2. Speaker" -
"Equalizer Settings" on the Setup menu. When this is set to "Off", the same
sound field setting is applied to all ranges.

Cinema Filter: Adjusts the soundtrack with the enhanced high range so that it
suits a home theater.
In this function, the following listening modes can be used: Dolby Audio - DD,
Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel,
DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio,
DTS Neural:X, DTS Express and DSD.

EQ for Standing Wave: Setting this "On" will control the effect of the standing wave generated by the sound wave reflected by wall or similar interfering with the original sound wave.



Level

Front: Adjust the speaker level of the front speakers while listening to the sound.
Center: Adjust the speaker level of the center speaker while listening to the sound.
Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound.

• If you set the unit to the standby mode, the adjustments you made will be
  restored to the previous statuses.
