DRX-2.4 - Multi-zone

You can enjoy 2 ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). The same source can be played
back in the main room and ZONE 2 simultaneously. Also, different sources can be played back in both rooms.

For the "NET" or "BLUETOOTH" input selector, you can select only the same source for the main room and separate room. If you select "NET" in the main room and then select "BLUETOOTH" in the separate room, the main room setting switches to "BLUETOOTH".

You cannot select different stations of AM/FM broadcasts for the main room and separate room.
Using Integra Control Pro is convenient for operations of multi-zone playback. You can use it on mobile devices, such as a smartphone and tablet to which Integra Control Pro (available on iOS or Android™) has been downloaded.

Playback

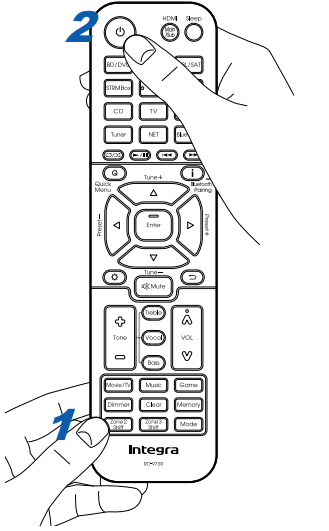

In remote controller operation, while pressing and holding the Zone 2 Shift
button, press other buttons for operation.

1. While pressing and holding the Zone 2 Shift button on the remote controller,
point the remote controller at this unit and press [POWER].

• "Z2" on the display of the main unit lights up.

2. While pressing and holding the Zone 2 Shift button on the remote controller,
press the input selector of the input source you want to play in the separate
room. To control on the main unit, press the Zone 2 button, and then within
8 seconds, press the input selector button of the input to be played in the
separate room. To play the same source in the main room and separate
room, press the Zone 2 button of the main unit twice.

3. When using the ZONE 2 PRE/LINE OUT connection, adjust the sound
volume on the integrated amplifier in the separate room. For the ZONE
speaker output, while pressing and holding the Zone 2 Shift button on the
remote controller, adjust the volume with the volume button. To do this on the
main unit, press Zone 2 Level ^/v button to adjust.

• When connecting an Integrated Amplifier that does not have a volume
  control, in the Setup menu, set "7. Multi Zone" - "Zone 2" - "Output Level"
  to "Variable (Default Value: Fixed)". If you do not set this,
  the volume output will be very loud and there is a danger of damage to
  the Integrated Amplifier, speakers, etc. When connecting an Integrated
  Amplifier that has a volume control, leave this as "Fixed".

-If you turn the unit to standby during multi-zone playback, the Z2 indicator is
dimmed, and the playback mode is switched to playback in a separate room
only. Setting ZONE 2 to on while the unit is in standby also switches the
playback mode to playback in the separate room only.

-When audio is being output from the ZONE SPEAKER, surround back
speakers or height speakers cannot play audio.

-The audio from externally connected AV components can be output to ZONE
2 only when the audio is analog or 2 ch PCM signal. When the AV component
is connected to this unit with an HDMI cable, digital coaxial cable or digital
optical cable, change the audio output of the AV component to the PCM
output.

-When video and audio via HDMI input are output to ZONE 2, set
"1. Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" to
"Use" on the Setup menu.

-DSD audio signals cannot be output to ZONE 2 with the "NET" input selector.

-If ZONE 2 is on, power consumption during standby will increase.

To disable the function: While pressing and holding the Zone 2 Shift button on
the remote controller, press [POWER]. Alternatively press Off on the main unit.
